JL Audio C2-650 6.5in Component Speakers Silk Dome Tweeters
6.5-inch 2-way component speaker system with mineral-filled polypropylene woofers and 0.75-inch silk dome tweeters delivering smooth midrange, extended highs, and strong mid-bass; includes crossovers and grilles.

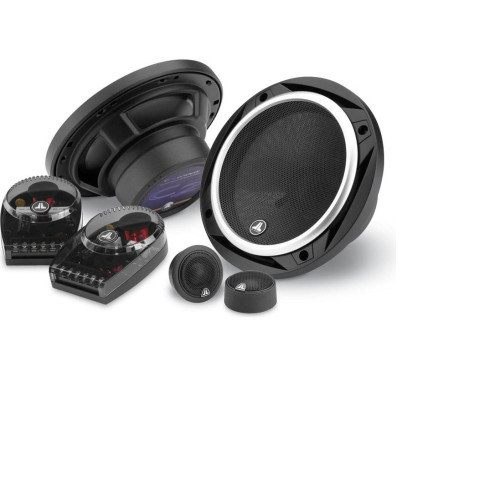

The JL Audio C2-650 is a 6.5-inch 2-way component speaker system featuring mineral-filled polypropylene woofers with long linear excursion and 0.75-inch silk dome tweeters. The system delivers sparkling high-frequency detail, smooth midrange and powerful mid-bass. Compact crossover networks use premium Mylar capacitors and segmented air-core inductors and provide three levels of tweeter attenuation plus a tweeter protector.

Woofers use stamped steel frames and multiple mounting patterns for installation in many vehicles that accept 6.5-inch speakers. Tweeters include flush and surface mount fixtures for flexible placement. Woofer grilles, tweeter fixtures, crossovers and mounting hardware are included. Sold as a pair.

General
SIZES 5.25"/6"/6.5"
CONTINUOUS POWER HANDLING (RMS) 60 W
SENSITIVITY (SPL @ 1 W/1 M) 5.25": 89.0 dB
6": 90.5 dB
6.5": 91.0 dB
FREQUENCY RESPONSE (+/- 3 DB) 5.25": 63 Hz-22 KHz
6"/6.5": 59 Hz-22 KHz
NOMINAL IMPEDANCE 4 O
RECOMMENDED AMPLIFIER POWER (RMS) 15 - 100 W/Channel
VOICE COIL DIAMETER 1" (25 mm)
CONE MATERIAL Mineral-filled polypropylene
TWEETER TYPE Silk Dome
TWEETER SIZE 0.75" (19 mm)
GRILLE(S) INCLUDED
WARRANTY 1 year
Connections
SPEAKER CONNECTIONS Spade connectors
Mounting Dimensions
FRAME OUTER DIAMETER 5.25": 5.20" (132 mm)
6": 6.21" (158 mm)
6.5": 6.5" (165 mm)
MOUNTING DEPTH CLEARANCE 5.25": 0.72" (18 mm)
6": 0.91" (23 mm)
6.5": 0.85" (22 mm)
FRONTAL GRILLE PROTRUSION 5.25": 0.72" (18 mm)
6": 0.91" (23 mm)
6.5": 0.85" (22 mm)
MOUNTING HOLE 5.25": 4.56" (116 mm)
6": 5" (127 mm)
6.5": 5.56" (141 mm)
GRILLE TRAY OUTER DIAMETER 5.25": 6.01" (153 mm)
6": 6.51" (163 mm)
6.5": 6.84" (174 mm)
MOTOR OUTER DIAMETER 5.25": 2.76" (70 mm)
6"/6.5": 3.15" (80 mm)
Tweeter Specifications
FLUSH MOUNT FIXTURE DIAMETER 1.87" (48 mm)
SURFACE MOUNT FIXTURE DIAMETER 1.69" (43 mm)
FLUSH MOUNT MOUNTING HOLE DIAMETER 1.625" (41 mm)
FLUSH MOUNT MOUNTING DEPTH 0.76" (19 mm)
FLUSH MOUNT TWEETER FRONTAL PROTRUSION 0.29" (7 mm)
SURFACE MOUNT TWEETER FRONTAL PROTRUSION 0.92" (23 mm)
Crossover Specifications
WIDTH 3.36" (85 mm)
HEIGHT 1.44" (37 mm)
DEPTH 4.72" (120 mm)
