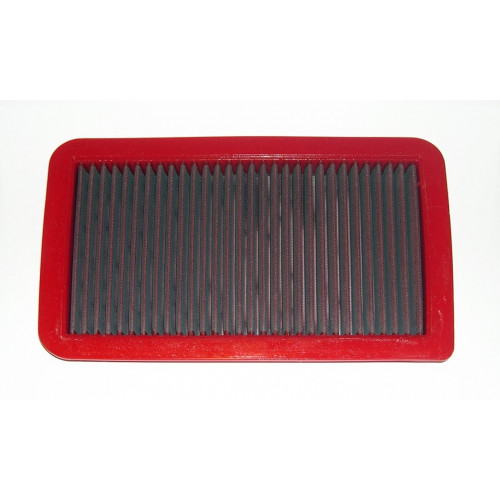

BMC 385/04 FLATPAN FILTER

Panel
Outside Width (mm) 200
Outside Length (mm) 312

Filter Material - Oiled Cotton Gauze
Washable - Yes
Warranty - 2 Years Limited
EAN - 8032872863836

Compatible with Mazda 2 & Mazda 3 vehicles as shown below:
2 (DE) 1.3 16V 75 2007 > 2015 ZJ46
2 (DE) 1.3 16V 84 2010 > 2015 ZJ46,ZJ-VE
2 (DE) 1.3 16V 86 2007 > 2015 ZJ46
2 (DE) 1.5 16V 103 2007 > 2015 ZY84,ZY66,ZY-DE
3 (BK) 1.4 80 2003 > 2009 FXJA
3 (BK) 1.4 84 2003 > 2009 ZJ07,ZJ30,ZJ32
3 (BK) 1.6 105 2003 > 2009 Z627,Z601
3 (BL) 1.6 105 2008 > 2014 Z668,Z682,Z683

The panel air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.
