BMC 390/06 FLATPAN FILTER TOYOTA LAND CRUISER

Cylindrical
Outside Width (mm) Di108
Outside Length (mm) De158
Height (mm) H146

Filter Material - Oiled Cotton Gauze
Washable - Yes
Warranty - 2 Years Limited
EAN - 8032872863843

COmpatible with:
BUSES COASTER 4.0D - 1982 > 1990
BUSES COASTER 4.0D - 1988 > 1990
BUSES COASTER 4.2D - 1990 > 1993
LAND CRUISER 3.0 D 80 1969 > 1984
LAND CRUISER 3.0 TD J7 125 1993 > 1996
LAND CRUISER 3.4 D 90 1981 > 1987
LAND CRUISER 3.4 D 95 1984 > 1996
LAND CRUISER 3.4 D J4 90 1980 > 1984
LAND CRUISER 3.4 D J7 124 1985 > 1986
LAND CRUISER 3.5 D 116 1990 > 1994
LAND CRUISER 3.6 D J4 90 1975 > 1980
LAND CRUISER 3.9 J4 131 1969 > 1975
LAND CRUISER 4.0 D J4 103 1980 > 1984
LAND CRUISER 4.0 D J6 103 1982 > 1989
LAND CRUISER 4.0 D J6 105 1981 > 1988
LAND CRUISER 4.0 J6 137 1984 > 1987
LAND CRUISER 4.0 J8 156 1987 > 1992
LAND CRUISER 4.0 J8 156 1990 > 1992
LAND CRUISER 4.0 TD 136 1985 > 1989
LAND CRUISER 4.0 TD J6 101 1982 > 1985
LAND CRUISER 4.2 137 1975 > 1982
LAND CRUISER 4.2 D 167 1990 > 2001
LAND CRUISER 4.2 D J8 135 1990 > 1997
LAND CRUISER 4.2 J4 121 1980 > 1986
LAND CRUISER 4.2 J6 120 1981 > 1988
LAND CRUISER 4.2 TD 131 1990
LAND CRUISER 4.2 TD 131 1990 > 2007
LAND CRUISER 4.2 TD 167 1990 > 2001
LAND CRUISER 4.2 TD 167 1990 > 1997
LAND CRUISER 4.2 TD 204 1998 > 2007
LAND CRUISER 4.2 TD 4x4 167 1990 > 2001
LAND CRUISER 4.2 TD J8 160 1992 > 1997
LAND CRUISER 4.2 TD J8 170 1995 > 1997
LAND CRUISER 4.5 J8 205 1992 > 1997
LAND CRUISER 80 4.5 4WD J8 292 1992 > 1998
LAND CRUISER 90 3.0 D-4D 170 2000 >
LAND CRUISER 100 4.5 235 1998 > 2008 FZJ1_, UZJ1_
VANS COASTER 4.2 D 80 1987 > 1993
VANS COASTER 4.2 TD 125 1987 > 1993
VANS COASTER 4.2 TD 131 1993 > 2003
VANS DYNA 2.5 D4D 82 2001 >
VANS DYNA 3.0 D4D 109 2006 >
VANS DYNA 3.0 D4D 136 2009 >
VANS DYNA 3.4 D 90 1977 > 1987
VANS DYNA 150 3.0 D 82 1985 > 1988
VANS HILUX VI 2.7 4WD 147 1997 > 2005
VANS HILUX VI 2.7 145 1998 > 2004
VANS HILUX VI 3.0 D 4WD 116 2001 > 2005
VANS LAND CRUISER 4.5 MPFi 4x4 224 1990 > 2007
VANS LITEACE 1.3 57 1979 > 1986
VANS LITEACE 1.3 M2 58 1979 > 1985

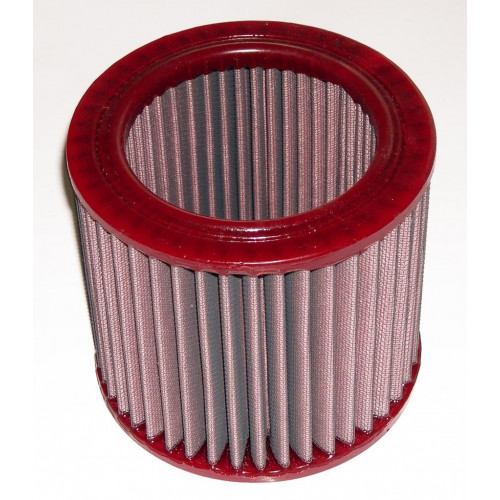

The cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.
