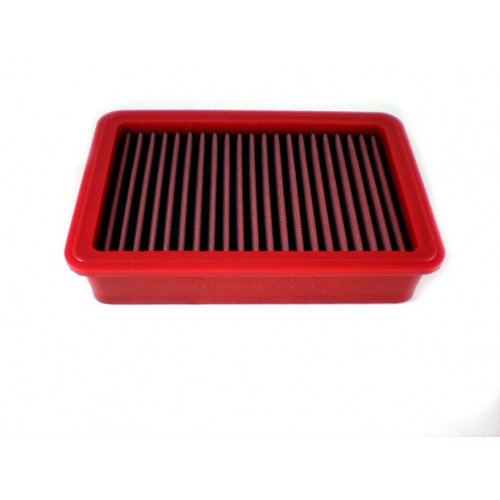

BMC 539/20 FLATPAN FILTER

Replacement performance air filter for certain Citroen, Peugeot and mitsubishi cars

Panel
Outside Width/Base Inner Diameter (mm) 185
Outside Length/Base Outside Diameter (mm) 273

Filter Material - Oiled Cotton Gauze
Washable - Yes
Warranty - 2 Years Limited
EAN - 8032872864741

Compatible with:
CITROËN
C4 AIRCROSS 1.6i 115 [Until n.13114] 2012 > 2017 4A92 MMC
C4 AIRCROSS 2.0i 150 [Until n.13114] 2012 > 2017 4B11 MMC
C-CROSSER 2.0 16V 147 - 2010 > 2013 4B11 MMC
C-CROSSER 2.2 HDI 155 156 - 2007 > 2013 DW12BTED4,DW12ME5
C-CROSSER 2.4 16V 170 - 2007 > 2012 4B12 MMC

MITSUBISHI
ASX 1.6 MIVEC 116 GA1W 2010 > 4A92
ASX 1.6 MIVEC 117 GA1W 2010 > 4A92
ASX 1.8 MIVEC 139 GA3W 2010 > 4B10
ASX 2.0 MIVEC 147 GA2W 2010 > 4B11
LANCER EVOLUTION X 2.0 280 CZ4A 2007 > 2008 4B11-T/C
LANCER EVOLUTION X 2.0 300 CZ4A 2008 > 2015 4B11-T/C
LANCER EVOLUTION X 2.0 FQ-300 305 CZ4A 2009 > 2010 4B11-T/C
LANCER EVOLUTION X 2.0 FQ-330 329 CZ4A 2009 > 2010 4B11-T/C
LANCER EVOLUTION X 2.0 FQ-360 359 CZ4A 2008 > 2012 4B11-T/C
LANCER EVOLUTION X 2.0 FQ-400 408 CZ4A 2009 > 2011 4B11-T/C
LANCER EVOLUTION X 2.0 FQ-400 MR 446 CZ4A 2014 4B11-T/C
LANCER EVOLUTION X 2.0 GSR Ralliart 304 CZ4A 2007 4B11-T/C
LANCER VIII 1.5 109 CY0 2008 > 2010 4A91
LANCER VIII 1.6 117 CY0 2010 > 2016 4A92
LANCER VIII 1.8 143 CY0 2007 > 2010 4B10
LANCER VIII 2.0 150 CY0 2007 > 2010 4B11
LANCER VIII 2.0 DI-D 140 CY0 2007 > 2010 BKD,BWC
LANCER VIII 2.0 Ralliart 241 CY0 2008 > 2016 4B11-T/C
LANCER VIII 2.4 168 CY0 2009 > 2015 4B12
OUTLANDER II 2.0 DI-D 140 CW8W 2007 > 2012 BSY
OUTLANDER II 2.0 MIVEC 147 CW4W 2010 > 2012 4B11
OUTLANDER II 2.2 DI-D 156 CW7W 2007 > 2012 4HK,4HN
OUTLANDER II 2.2 DI-D 177 CW1W 2010 > 2012 4N14
OUTLANDER II 2.4 MIVEC 170 CW5W 2007 > 2012 4B12
OUTLANDER II 3.0 MIVEC 220 CW0 2006 > 2012 6B31
OUTLANDER II 3.0 MIVEC AWD 223 CW0 2006 > 2010 6B31
OUTLANDER II 3.0 MIVEC AWD 230 CW0 2010 > 2012 6B31

PEUGEOT
4008 1.6i 115 [Until n.13114] 2012 > 2017 4A92 MMC
4007 2.0 16V 147 - 2010 > 2013 4B11 MMC
4008 2.0i 150 [Until n.13114] 2012 > 2017 4B11 MMC
4007 2.2 HDI 155 156 - 2007 > 2013 DW12BTED4,DW12ME5
4007 2.4 16V 170 - 2007 > 2012 4B12 MMC

PROTON
INSPIRA 1.8 MIVEC 138 - 2010 > 2015 4B10
INSPIRA 2.0 MIVEC 148 - 2010 > 2015 4B11

The panel air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.
