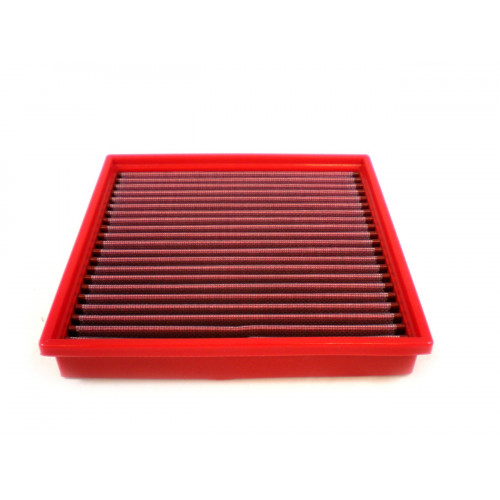

BMC 522/20 FLATPAN FILTER

Replacement performance air filter for Chev utility and jeep vehicles.

Panel
Outside Width/Base Inner Diameter (mm) 211
Outside Length/Base Outside Diameter (mm) 221


Filter Material - Oiled Cotton Gauze
Washable - Yes
Warranty - 2 Years Limited
EAN - 8032872864697

Compatible with:
CHRYSLER
300 C 3.0 CRD 211 - 2010 >
300 C 3.0 CRD 218 - 2005 > 2010 M664

JEEP
GRAND CHEROKEE IV (WK/WK2) 3.0 CRD 190 WK / WK2 2011 >
GRAND CHEROKEE IV (WK/WK2) 3.0 CRD 241 WK / WK2 2011 >
GRAND CHEROKEE IV (WK/WK2) 3.0 CRD V6 250 WK / WK2 2013 >

LANCIA
THEMA II 3.0 V6 CRD 190 - 2011 > 2014
THEMA II 3.0 V6 CRD 239 - 2011 > 2014


The panel air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.
