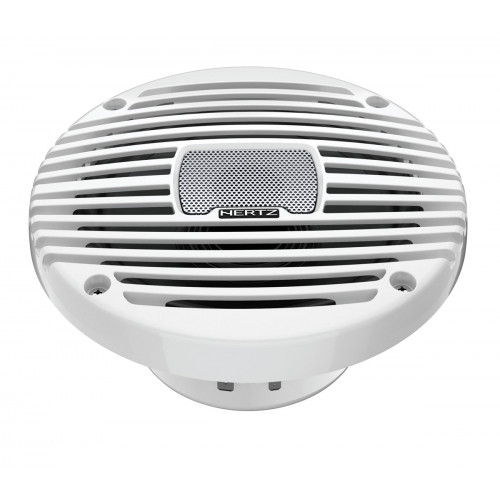

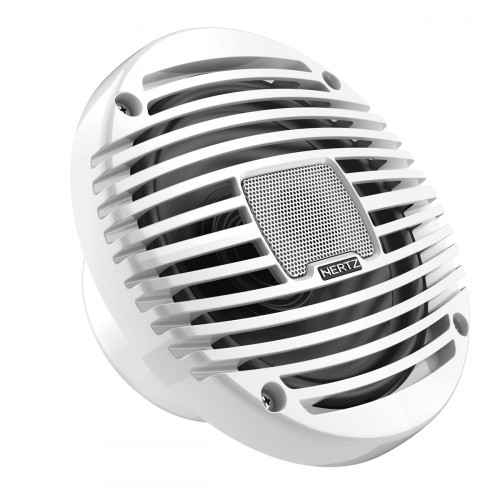

HERTZ MARINE HEX 6.5 M-W COAXIL SPEAKERS

HEX 6.5 M-W / C165 (6.5) mm (in.) / 85 (3.25) mm (in.) / Coax / 100 W / 4 Ohm
HEX 6.5 M marine coaxial, available with both white (W) and black grilles (C), will give you years of pure fun while cruising, being over engineered and tested for Marine applications. The compact 6.5” speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable.

TECHNICAL SPECS

Component COAX
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 50
Power Handling - Peak W 100
Impedance Ohm 4
Depth mm (in.) 85 (3.25)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 13 (0.5)
Frequency Response Hz 50 ÷ 23k
Woofer Magnet size D x d x h mm (in.) 85 x 32 x 15 (3.35 x 1.26 x 0.59)
Tweeter Magnet size D x h mm (in.) 12,9 x 2 + 11 x 1,9 (0.51 x 0.08 + 0.43 x 0.07)
Weight of one speaker kg (lb.) 1 (2.2)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Polypropylene with UV inhibitors
Dome PEI
Xmech mm (in.) ±4,8 (0.19)

ELECTRO ACOUSTIC SPECS

D mm 125
Re Ohm 3,3
Fs Hz 78
Le mH 0,109
Vas I 6,52
Mms g 13,5
Cms mm/N 0,31
BL T*m 4,8
Qts 0,82
Qes 0,95
Qms 6,1
Spl dB 88
