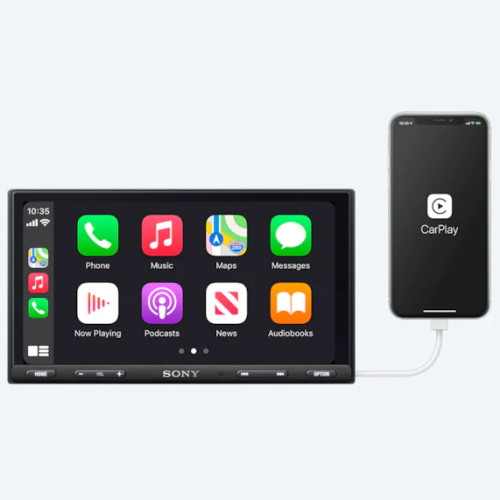

SONY XAV-AX5650 / 17.6 cm (6.95'') DAB Media Receiver with WebLink™ Cast

SPECIFICATIONS:

Mirror and control selected smartphone apps with WebLink™ Cast5

Bezel-less capacitive touchscreen for a seamless display

Dual USB ports let you connect a smartphone and USB device simultaneously

Digital radio tick mark certified

HDMI input for an external source device

OUTPUT POWER

55W x 4 PRE OUT
3 Pre 5V (Front / Rear / Sub x 1)

SCREEN DIAGONAL (INCH/CM)
6.95 inch

USB DEVICE CONTROL (AUDIO CODEC)
USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC

USB DEVICE CONTROL (VIDEO CODEC)
Only USB1: MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD



Size & Weight

DIMENSIONS (W X H X D)
178x100x139mm

WEIGHT
1.0kg

General Features

OUTPUT POWER

55W x 4

PRE OUT
3 Pre 5V (Front / Rear / Sub x 1)

REAR VIEW CAMERA IN
Yes

USB
Yes (Rear x2)

FIRMWARE UPGRADABILITY
Yes

DSO (DYNAMIC STAGE ORGANIZER)
Yes

EQUALIZER
10-band Graphic Equalizer

EXTRA BASS
Yes (Off / 1 / 2)

Connectivity

BLUETOOTH®
Yes

Tuner Features

PRESET
DAB18/FM12/AM6

AUTO MEMORY
BTM
RDS / EON
Yes (RDS)

Bluetooth Profile
HFP
Yes (1.6)
A2DP
Yes (1.3)
AVRCP
Yes (1.3)
PBAP
Yes (1.1)

Bluetooth Features

SPEED DIAL
Yes (6 memories)
RECENT CALLS (# OF)
Yes
LAST DIALED CALL
Yes (select from the dialed call history)
PHONEBOOK ACCESS VIA PBAP
Yes
ALPHABETICAL PHONEBOOK SORTING
Yes
RING VOLUME LEVEL CONTROL
Yes
CALL VOLUME LEVEL CONTROL
Yes
EXTERNAL MICROPHONE
Supplied
BATTERY REMINDER
Yes
SIGNAL STRENGTH INDICATION
Yes
Bluetooth Audio Features
AUDIO CODEC (BLUETOOTH AUDIO)
SBC / AAC
PAUSE (BLUETOOTH AUDIO)
Yes
CUE / REV
Yes
TRACK +/-
Yes
GROUP (FOLDER) +/-
Yes
AUDIO LEVEL ADJUSTMENT
Yes (-6dB to +6dB)
REPEAT CONTROL (AUDIO DEVICE SIDE)
Yes
SHUFFLE CONTROL (AUDIO DEVICE SIDE)
Yes
META DATA INDICATION
Yes
Panel Design
PANEL SURFACE FINISH COLOR
Black
KEY ILLUMINATION
Yes (White)
Monitor(AVC)
LCD TYPE
TFT Active Matrix
SCREEN ASPECT
17: 9
SCREEN DIAGONAL (INCH/CM)
6.95 inch
RESOLUTION (DOT)
800 x 480
DIMMER
Yes
CONTRAST RATIO
400
BRIGHTNESS
500cd / m2
Display Panel
KEY ILLUMINATION INITIAL
Yes (White)
DIMMER ADJUST
Yes
User Interface
TOUCH PANEL
Yes / Capacitive
GESTURE COMMAND
Yes
PARKING CONTROL
Yes
PARKING LINE ADJUST
Yes
ASPECT RATIO SELECT
Yes
REAR VIEW CAMERA-IN MARKER SETTING
Yes
USB Mass Storage Device Control Feature
USB DEVICE CONTROL (REPEAT)
TRACK / FOLDER / DRIVE
USB DEVICE CONTROL (SHUFFLE)
OFF / FOLDER / DEVICE
USB DEVICE CONTROL (PAUSE)
Yes
USB DEVICE CONTROL (RESUME PLAY)
Yes

USB DEVICE CONTROL (AUDIO CODEC)
USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC

USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION)
USB1: .wav / .mp3 / .wma / .m4a / .flac, USB2: .mp3 / .wma / .flac

USB DEVICE CONTROL (VIDEO CODEC)
Only USB1: MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD
USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION)
Only USB1: .mp4 / .wmv / .mkv

Multi-Language

MENU
English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian

CAUTION
English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian

ID3 TAG
English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
What's In The Box
External Microphone
Fitting Frame
Collar(Hard Type)
ISO connector
Instruction Manual
Warranty Card
