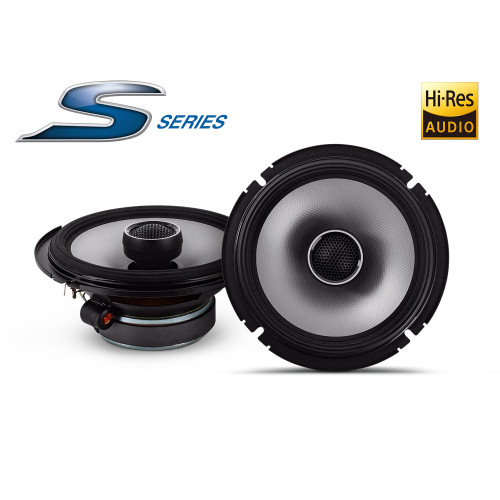

ALPINE S2-S65 S-SERIES 6' 2WAY COAXILS

S-Series 16,5cm (6.5”) Coaxial 2-Way Speakers
S2-S65
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65 16.5cm (6-1/2") Coaxial Speakers offer a new standard in entry-level sound performance.

We packed supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from a combination of polypropylene, glass fiber, and mica materials, serves up the essential high output / low distortion sound required for High-Res Audio performance. Alpine S-Series speakers feature increased magnet sizes for more power handling and best mid-bass performance in their category.

The woofer's High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A 2.5cm (1") dome tweeter serves up all the high-frequency detail you've been missing with your factory speakers.

All speakers in the S-Series line have a wide vehicle fitment range and include several adapters and spacers. Using in-line crossovers, these speakers can be installed quick and easy even at home.

Alpine S-Series speakers are available in coaxial and component configurations and come in a variety of different sizes, such as 20cm, 16,5cm, 13cm, 10cm, 6x9 inches and 6x8 inches.

FEATURES

General

Woofer Size: 16,5cm (6.5”)
Integrated 2.5cm (1“) Tweeters (Coaxial)
Hi-Res Audio Certified (up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (HAMR) Surround
Compatible with KTE-S65G Speaker Grills (sold separately)


SPECIFICATIONS

Power Handling

Peak Power: 240 Watts
RMS Power: 80 Watts
Dimensions Woofer

Cutout Diameter: 128.8mm
Mounting Depth: 57.7mm
Mounting Height: 19.3mm
Magnet: 90.0mm
General

Frequency Range: 55 Hz - 40 kHz (Hi-Res Audio Certified)
Impedance: 4 Ohms
Sensitivity: 88 dB/W
