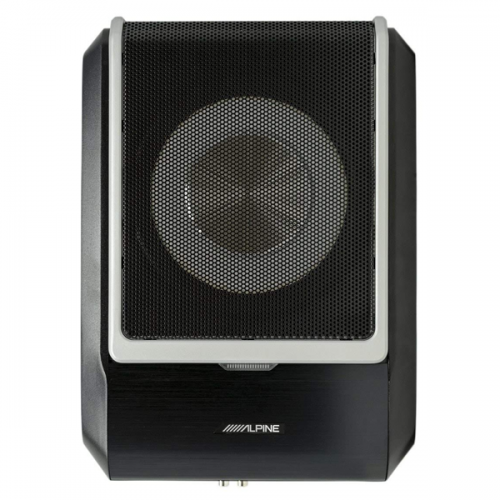

ALPINE PWD-X5

Achieving a perfectly integrated, high-performance car audio installation with only one device is now possible with the new Alpine PWD-X5.

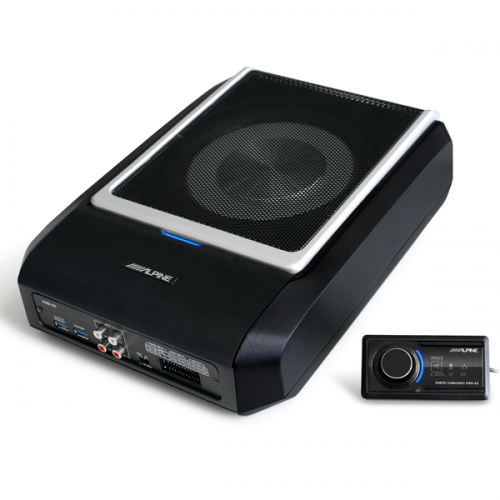

This very unique sound system upgrade product includes a high-performance Digital Sound Processor (DSP), 4-channel amplifier for your front and rear door speakers, as well as an ultra-flat active subwoofer. The small footprint allows the PWD-X5 to be easily installed inside the car’s cabin to enjoy a nice bass upgrade. Connect either OEM radios via high-power speaker level inputs or aftermarket radio via RCA inputs, and control the system through the wired remote control and the convenient smartphone app.

This product is perfect for customers that look for a big improvement of their car’s sound quality, without installing many different devices and routing cables all across their car. The PWD-X5 comes with a full wiring kit including high-qulaity power cables (4.5 meters) with main fuse.

All-in-one sound upgrade
The PWD-X5 features a Digital Sound Processor (DSP), compact powered subwoofer and a 4-channel amplifier - all in one box. This is perfect for smaller vehicles and customers who do not want to install many different devices in their car. The built-in amplifier delivers 4 x 50 Watts for the speaker channels and 240 Watts for the built-in subwoofer (peak power). Installation brackets and a wiring kit are included in the set.

Compact installation
The very compact measurement of only 350mm length x 245mm width x 80mm height allows the PWD-X5 to be installed under the front seats of many vehicles. It can be also easily installed in the trunk of hatchback or coupe cars. The total weight of the product is just above 5kg.

Technical Specifications

Power output:
Rated power: 25W*4+165W;
peak power: 50W*4+240W
Signal-to-noise ratio: =80dB
Bass boost: -12dB~+12dB
Frequency response: 20Hz~20KHz
Input impedance: Low-level input: 20KO; high-level input: 100O
Phase selection: 0°/180°
Remote ON: DC high-level /REM input activation
Operating temperature: -10~60°C
Storage temperature: -40~85°C
Power source: DC 14.4V (9V~16V) negative ground
Activate REM input: Options of high-level activation (H1+/H3+) and ACC activation for selection
Activate REM output: +12V activation voltage output (0.5A)
Stand-by current: 750mA
Net weight: 5.35kg
Measurements: 350mm (L) *245mm (W) *80mm (H)

Functional Parameters

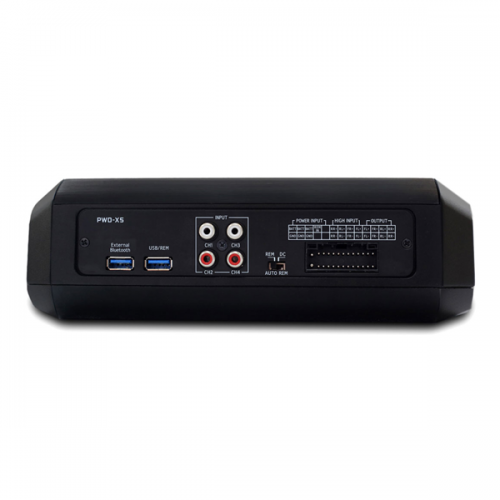

Type of input signals: 4-channel high-level, 4-channel stereophonic low-level, Bluetooth
Output position: 4-channel amplifier output (4O 25W*4)
Output signal gain:
Master volume: 0~35;
Subwoofer volume: 0~15
Filter slope:
CH1~CH4 6 dB/Oct or 12dB/Oct
CH5 6/12/18/24dB/Oct
Q value: 0.404~28.85
Delay: 0.000~5.4ms/0.000~187cm
PreSets: 15 presets selectable
