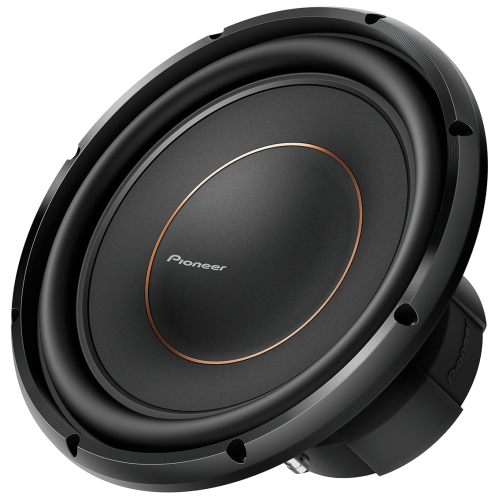

PIONEER TS-D12D4
12" D-SERIES SUBWOOFER
600w RMS

12" - 2000w Max Power, Dual 4? Voice Coil, Aramid Fiber IMPP Cone, Rubber Surround - Subwoofer

Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
Butyl Rubber Surround for Strength and Linearity During High Excursion
Oversized 74.1 oz Double Stacked Magnet and Vented Pole Yoke for Increased Power Handling.


D Subwoofer, FORCEFUL, DEEP, DEFINED.

Too much isn’t enough, embrace the bass. The D subwoofer is a culmination of Pioneer technologies that produce thick, deep, powerful and accurate bass that makes listening to your favorite music energetic, fun and engaging.
Combining bass quality and bass quantity with high power, plus installation flexibility that provide high performance in both acoustic suspension (sealed) and bass reflex (ported) enclosures, the D subwoofer is the ultimate all-around performer.
Slam, attack, power. Don’t just listen to your music, feel it.


BUTYL RUBBER SURROUND
Made of a specially blended, highly durable and moisture-resistant compound, butyl rubber keeps the cone moving in a linear direction, seals the cone to the basket and quickly dampens cone vibration once the signal has changed or stopped. This results in less distortion and superior frequency response.

ARAMID FIBER INTERLACED INJECTION MOLDED POLYPROPYLENE (IMPP)
Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a subwoofer cone - with low mass and high damping, PP cones offer good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting Aramid Fiber Interlaced IMPP subwoofer cone is incredibly strong and low mass with high rigidity and superior strength to produce deep, powerful and undistorted bass.

KEY FEATURES
System Type
Component Subwoofer
Sensitivity (1W/1m)
78 dB
Frequency Range
20 Hz to 4.7 kHz
CTA-2031 Compliant
Yes

Continuous Power handling (RMS) - Watts
600 Watts
Maximum Peak Power Handling - Watts
2000 Watts
Nominal Impedance - OHM
4 DVC

BUILD
Shape
Round
Size
12"
Cone Material
IMPP - Aramid Fiber
Center Cap Material
ABS
Surround Material
Rubber
Surround Type
Rolled
Basket Material
Stamped Metal
Magnet Material
Ferrite
Magnet Weight
73.6 oz
Voice Coil Type
Dual Voice
Voice Coil Bobbin
Alminium
Voice Coil wire
Copper
Damper
Aramid
Gasket
ABS
