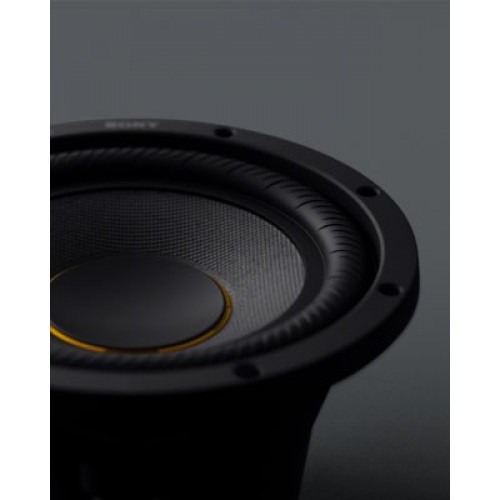

SONY XS-104ES 10" MOBILE ES RANGE SUBWOOFER

Features:

Size & Weight

WEIGHT
4,860 g

Speaker System
CONFIGURATION
Single Voice Coil

SIZE
10" (25 cm)

General Features:

PEAK POWER
1800 W

RMS POWER
450 W

RATED POWER
350 W

EFFECTIVE FREQUENCY RANGE
28-500 Hz

OUTPUT SOUND PRESSURE
86 dB ±2dB SPL (1W,1m)

IMPEDANCE (OHMS)
4

DIAPHRAGM MATERIAL
MRC Honeycomb

MAGNET MATERIAL
Ferrite

SURROUND MATERIAL
Rubber (Separated Notch)



SPECIAL FEATURES

MRC Honeycomb Subwoofer Diaphragm
Our acclaimed Mica Reinforced Cellular (MRC) diaphragm material is further enhanced via a honeycomb fibre structure, for unmatched rigidity and responsiveness. Enhancements over the years of MRC material development produced a driver 10x more rigid than conventional PP Matrix cones, for natural low-distortion sound and a wide frequency response.


Separated Notch Edge Surround
The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.


Progressive Height Rate Spider
The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone. To increase signal integrity and prevent sound interference the lead wire from the voice coil is also sewn to the spider, reducing wire movement.

Gold-plated Input Terminals
Gold-plated spring terminals allow up to AWG#10 speaker cables.


Five-beam Frame Structure & Dynamic Air Diffuser
The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.
