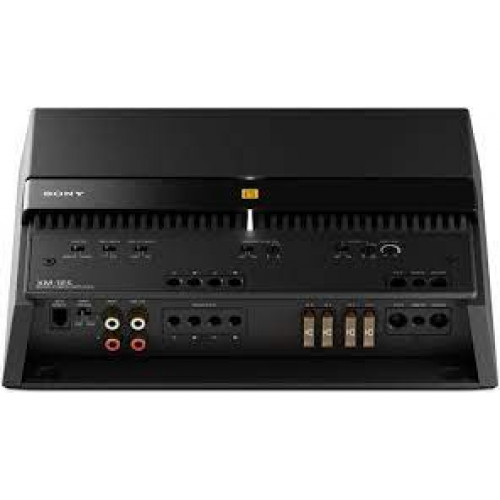

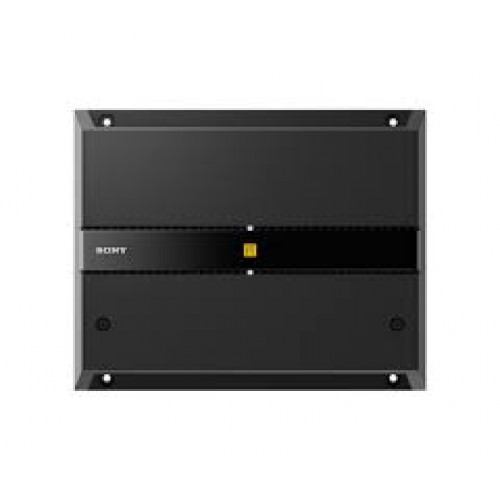

SONY XM-1ES MONOBLOCK AMPLIFIER

Size & Weight
DIMENSIONS (W X H X D)
270mm x 60mm x 215mm
WEIGHT
2.9kg
Amplifier
CHANNEL CONFIGURATION
1-ch(Mono)
LOW PASS FILTER
Variable(50-500Hz)
LOW PASS FILTER SLOPE
24dB/oct
CTA Rated Output Power
4 OHMS
600W x1
Rated Output Power (14.4V)
4 OHMS
600W ×1 at 100Hz,1% THD
2 OHMS
1000W ×1 at 100Hz,1% THD
Maximum Output Power (1 kHz)
MAX. CHANNEL POWER CONFIGURATION AT 2 OHMS
1550W
MAX. CHANNEL OUTPUT POWER CONFIGURATION AT 4 OHM
1000W
General Features
FREQUENCY RESPONSE
10-500Hz
TOLERANCE
+0.5/-3dB
TOTAL HARMONIC DISTORTION AT 1 KHZ (%)
Less than 0.05%
Details
CTA POWER OUTPUT
600W ×1
MOSFET
Yes (Power Supply)
SUBSONIC HIGH PASS FILTER
Yes
SPEAKER LEVEL INPUT
Yes
GOLD PLATED CONNECTORS
Yes
