Amplifier module for subwoofer boxes

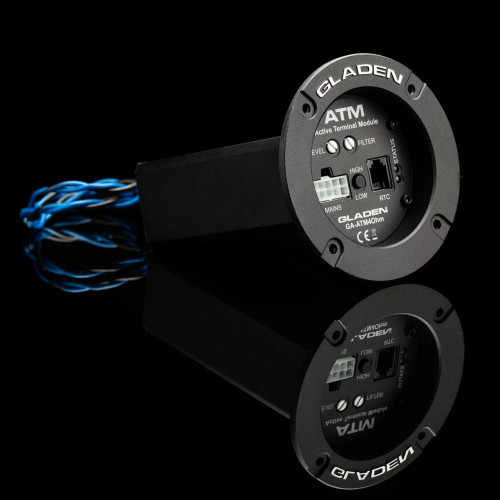

Gladen ATM 2 / 4 Module
Available for 2 & 4 Ohm subwoofers
1 x 200 Watts RMS at 4 Ohm

Overview Gladen ATM 2 / 4 Module
The Gladen ATM 2/4 module can be exchanged for a 78 mm round terminal of a subwoofer cabinet due to its round design.

This mono amplifier supplies the subwoofer chassis with 200 Watts RMS at 4 Ohms and is supplied with power and input signals via a Molex Mini Fit JR connector. The amplifier is available for 2 and 4 Ohm subwoofer chassis.

To adjust the subwoofer amplifier, the low pass filter, a high/low input and the level can be set.

With the optional RTC2 module, the amplifier can also be controlled remotely.

Technical data Gladen ATM 2 / 4 Module
Specifications:
Power:
200 Watts @ 14.4 V

Frequency range:
25 - 220 Hz

Low pass filter:
50 - 120 Hz, 12 dB/Oct

Low-level inputs:
Yes

High-level inputs:
Yes

Automatic switch-on:
Yes

Remote control:
Gain (via optional RTC2)
