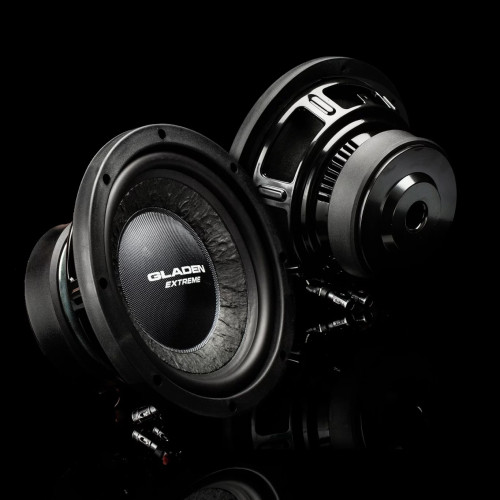

Subwoofer

Gladen RS 08 /
RS 08 Extreme
175 / 250 Watts (RS08)
200 / 300 Watts (RS08 EXTREME)
Voice coil 1.5
4 Ohm (RS 08)
2 Ohm (RS 08 EXTREME)
Overview Gladen RS 08 / RS 08 Extreme
Allround subwoofer
Sheet steel basket
Black nomex spider
Scooped paper cone
Glass fiber dust cap
Technical data RS 08 / RS 08 Extreme
Material:
Cone:
Paper

Spider:
Nomex

Surround:
Rubber

Coil former:
Fiberglass

Basket:
Steel

Dust Cap:
Glasfaser

Specifications Gladen RS08:
DC resistance (Rdc):
3,5 O

Nominal impedance (ZN):
4 O

Resonance frequency (fs):
39,6 Hz

Voice coil diameter:
1,5 inch

Mechanical Q factor (Qms):
5,96

Electrical Q factor (Qes):
0,55

Total Q factor (Qts):
0,5

Moving mass (Mms):
57,3 g

Effective piston area (Sd):
221 cm²

Mechanical resistance (Rms):
2,5 kg/s

Compliance (Cms):
0,28 mm/N

Force factor (BL):
9,5 Tm

Equivalent air volume (Vas):
18,1 dm³

SPL 2,83V/1m:
88 dB

Specifications Gladen RS08 EXTREME:
DC resistance (Rdc):
2 O

Nominal impedance (ZN):
2 O

Resonance frequency (fs):
36,3 Hz

Voice coil diameter:
1,5 inch

Mechanical Q factor (Qms):
5,65

Electrical Q factor (Qes):
0,40

Total Q factor (Qts):
0,38

Moving mass (Mms):
59,3 g

Effective piston area (Sd):
221 cm²

Mechanical resistance (Rms):
2,4 kg/s

Compliance (Cms):
0,32 mm/N

Force factor (BL):
8,2 Tm

Equivalent air volume (Vas):
21,2 dm³

SPL 2,83V/1m:
89 dB
