Mono amplifier

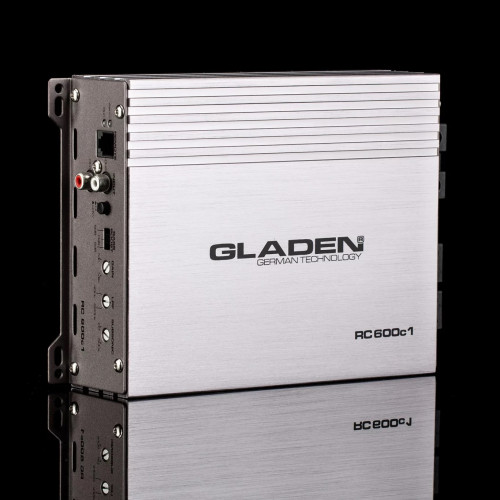

Gladen RC 600c1
4 Ohm: 1 x 360 Watts
2 Ohm: 1 x 560 Watts
CLASS-D
Overview Gladen RC 600c1
Mono amplifier CLASS-D
High-level with auto sense
Double-sided PCB and
SMD components
Optional remote control module
Functions:

Input with low or high level signal
High level with auto-sense function (no remote control signal required)
Low-pass filter from 40 to 220 Hz
Subsonic filter from 10 to 50 Hz
Bass boost: - 6 dB, 0 dB or + 6 dB
RC-RTC wired remote control (optional)
Overheat, overload, short circuit and speaker DC protection
Solid, heavy aluminum heat sink
Technical data Gladen RC 600c1
Output power:
RMS power, 4 Ohm:
360 Watts

RMS power, 2 Ohm:
560 Watts

Specifications:
Thermal protection:
80 °C

THD @ 4 O / 50% Pmax:
0.5 %

Signal/noise:
100 dB

Band width +- 3 dB:
20 - 220 Hz

Input sensitivity:
0.2 - 10 Vrms

Low input impedance:
17 kO

High input impedance:
50 O (with RC-HLT)

Damping @ 80 Hz:
60

Power consumption, idle:
0.9 A

Weight:
1.72 kg

Dimensions:
Length: 208 mm x Width: 150 mm x Height: 50 mm
