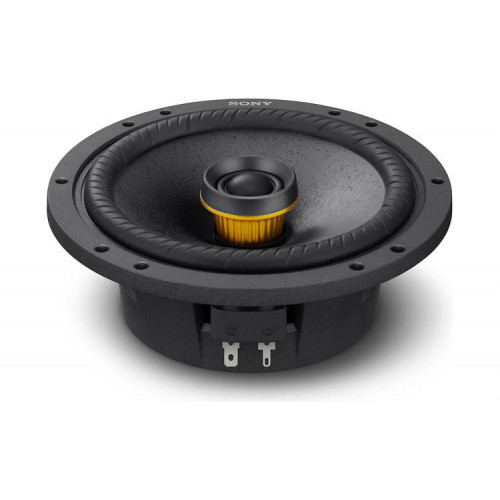

SONY XS-160ES 61/2" 2WAY MOBILE ES RANGE COAXILS

Specifications:

Size & Weight

WEIGHT
990 g

Speaker System
CONFIGURATION
Coaxial, 2-way

SIZE
6 1/2" (16 cm)

General Features:

PEAK POWER
270 W

RMS POWER
90 W

RATED POWER
60 W

EFFECTIVE FREQUENCY RANGE
45-40,000 Hz

OUTPUT SOUND PRESSURE
89 dB ±2dB SPL (1W,1m)

IMPEDANCE (OHMS)
4

Woofer
TYPE
Cone

SURROUND MATERIAL
Rubber (Separated Notch)

WOOFER MAGNET MATERIAL
Ferrite

WOOFER DIAPHRAGM MATERIAL
MRC Aramid Fiber Matrix

Tweeter
TYPE

Soft Dome
DIAMETER
13/16" (2.0cm)

TWEETER DIAPHRAGM MATERIAL
Synthetic Fiber

TWEETER MAGNET MATERIAL
Neodymium

What's In The Box
Woofer Grills
Placeholder

SPECIAL FEATURES

MRC Aramid Fiber Matrix Woofer
The main speaker diaphragm on the XS-160ES is crafted from Sony's unique Mica Reinforced Cellular (MRC) material. This rigid but lightweight driver allows for a much more precise response than conventional driver materials, for smoother and more natural sound characteristics.


Optimal formulation
Embedding MRC in a unique matrix with aramid fibers suppresses diaphragm resonance and minimises distortion — not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean — even at high volume.


Separated Notch Edge Surround
The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.

Five-beam Frame Structure & Dynamic Air Diffuser
The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.


Progressive Height Rate Spider
The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone.


Tweeters to hit the high notes
Compatible with High-Resolution Audio, a soft dome tweeter diaphragm is directly attached on the voice coil, designed to cover your music's ultra-high ends, with a frequency range extending up to 40kHz.
