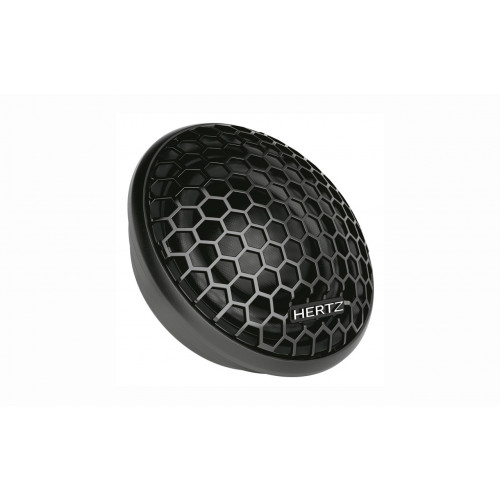

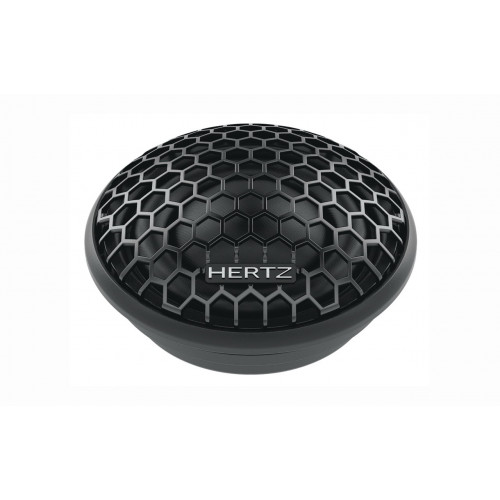

C 2626 (1) mm (in.) Tweeter 120 W 4 Ohm

C 26 tweeter features a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity.
sharethis-white sharing button

SPECS
FEATURES

Component Tweeter
Size mm (in.) 26 (1)
Power Handling - Peak W 120
Power Handling - Peak Note (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)
Impedance Ohm 4
Voice Coil Ø 20(0.8)
Frequency Response Hz 1.8k ÷ 22.5k
Magnet size D x d x h mm (in.) 19 x 0 x 3 (0.75 x 0 x 0.12)
Weight of one speaker kg (lb.) 0,04 (0.08)
Magnet Neodymium
Dome Tetolon

Technical Specs
D mm 26
Re Ohm 3,7
Fs Hz 1500
Le mH 0,02
Vas I -
Mms g 0,17
Cms mm/N 0,07
BL T*m 1,3
Qts 1,6
Qes 3,5
Qms 2,9
Spl dB 92
