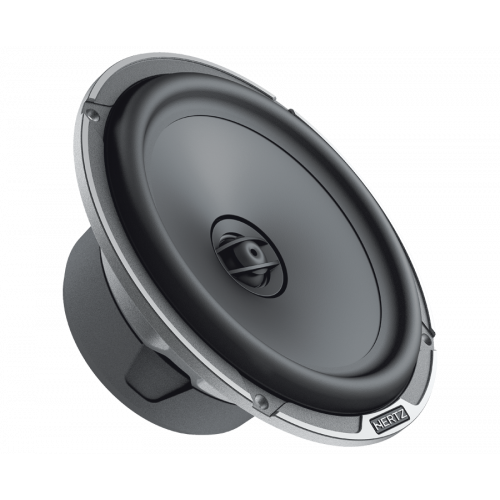

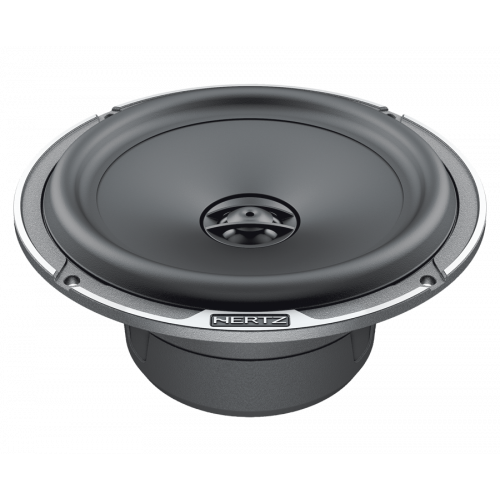

MPX 165.3 PRO165 (6.5) mm (in.) Coaxials 200 W 4 Ohm

The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.

TECHNICAL SPECS

Component Coaxials
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 100
Power Handling - Peak W 200
Impedance Ohm 4
Woofer Voice Coil Ø mm (in.) 36 (1.42)
Tweeter Voice Coil Ø mm (in.) 20 (0.8)
Frequency Response Hz 45 ÷ 21,5k
Woofer Magnet size D x d x h mm (in.) 90 x 45 x 17 (3.54 x 1.77 x 0.67)
Tweeter Magnet size D x h mm (in.) 29.5 x 22 x 4 (1.16 x 0.87 x 0.16)
Weight of one speaker kg (lb.) 1.27 (2.8)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Pressed-pulp cone with cotton fibers
Dome Tetolon
Xmech mm (in.) ±6 (0.24)


ELECTRO ACCOUSTIC SPECS

D mm 132
Re Ohm 3,1
Fs Hz 90
Le mH 0,01
Vas I 4
Mms g 18,9
Cms mm/N 0,15
BL T*m 5,8
Qts 0,88
Qes 1,06
Qms 5,5
Spl dB 92
