AP1 D

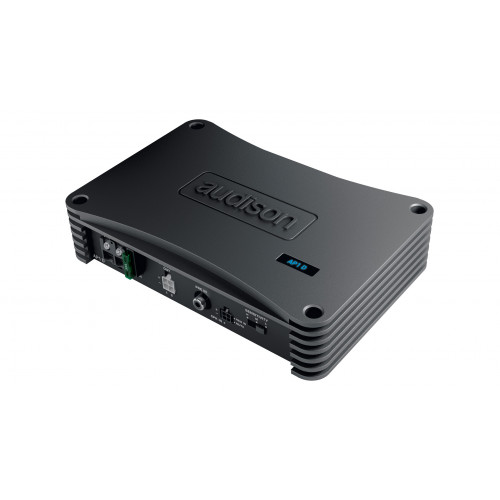

The AP1 D amplifier was designed to drive a subwoofer and is the ideal extension of the AP8.9 bit and AP4.9 bit. At 2 Ohms it is stable and can supply 540 W power with extremely compact dimensions. With the APTK 3 (Audison Prima Tower Kit 3) stacking system it’s possible to stack the AP1 D and save space without any problem of overheating.


Power Output:

Load. Imp. Mono
4 Ohm 310 W
2 Ohm 540 W

POWER SUPPLY

Voltage: 7.5 ÷ 15 VDC
Idling current: 1 A
Switched off: <0.05 mA
Consumption @ 14.4 VDC 2? Max Musical Power: 30 A
Remote IN 7 ÷ 15 VDC (1 mA)
Fuse 30 A
AMPLIFIER STAGE
Distortion - THD @ 1 kHz, 4 O, 90% Output Power: 0.2 %
Distortion - THD @ 100 Hz, 4 O, 90% Output Power: 0.3 %
Bandwidth (-3 dB, 2 V RMS, 4?): 16 ÷ 40k Hz
S/N ratio @ A weighted, 1,5V, Output Power: 100 dBA
Damping factor @ 100 Hz, 2 VRMS, 4 O: 150
Damping factor @ 1 kHz, 2 VRMS, 4 O 160
Input sensitivity PRE IN: Selectable: 1,5 - 3,0 - 4,5 V RMS
Input sensitivity SPEAKER IN: Selectable: 3,0 – 6,0 – 9,0 V RMS
Input impedance: 15k ?
LOAD IMPEDANCE (MIN):
• Ch: 1 2?
MAX POWER 540 W
OUTPUT POWER (RMS) @ 14.4 VDC, 1% THD:
• 1 Ch @ 4?: 310 W x 1
• 1 Ch @ 2?: 540 W x 1
OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:
• 1 Ch @ 4?: 380 W x 1
• 1 Ch @ 2?: 680 W x 1

CEA SPECIFICATIONS
Output power @ 4?, ?1% THD+N, 14.4 V: 310 W x 1
SN ratio (ref. 1 W output): 79 dB

SIGNAL CONNECTIONS
PRE IN RCA
SPEAKER IN wired
MUTE (Energy Saving Control) wired from AP4.9 bit / AP5.9 bit

GENERAL REQUIREMENTS
Ambient operating temperature range: 0 °C to 55 °C (32°F to 131°F)

SIZE / WEIGHT
Max size (mm/in.): 198 x 45,50 x 134 / 7.8 x 1.8 x 5.27
Weight (kg/lb): 1.32 / 2.91
