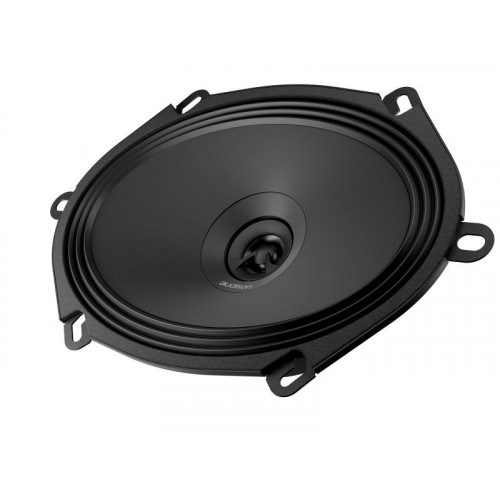

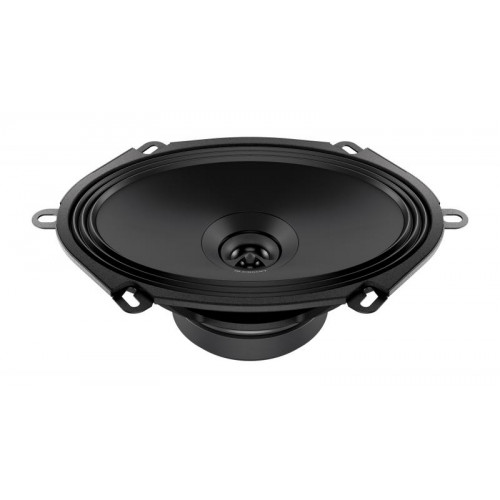

AUDISON APX-570
5X7 SPEAKERS


APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 5×7? cones surround features an exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

SPECIFICATIONS
Comp Two way coaxial
Size Woofer (5? x 7?)
Tweeter diaphragm 24 mm (0.9?)
Power Handling 70 W Continuous Power
210 W Peak Power
Impedance 4 O
Frequency Response 60 ÷ 23k Hz
Sensitivity 93 dB/Spl
Magnet High density flux ferrite
Dome Water-repellent pressed paper
