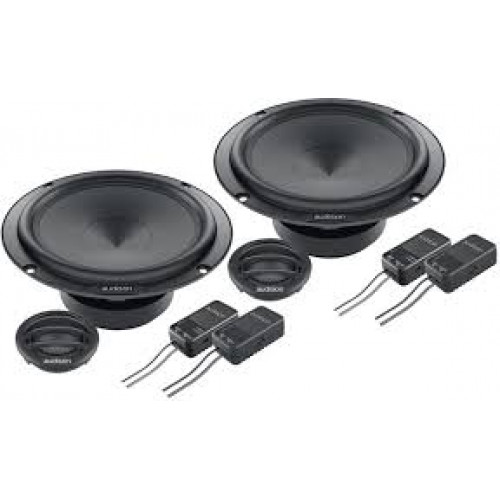

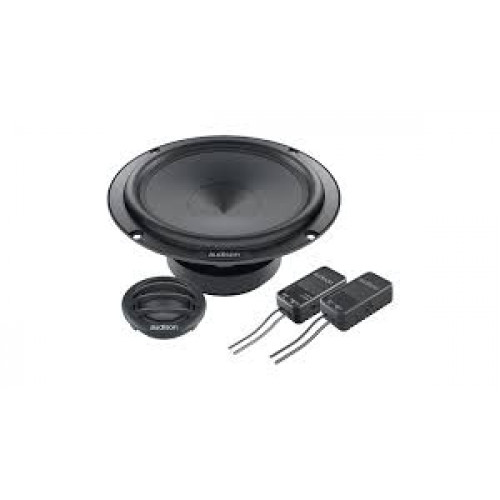

APK 165P

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.

TECHNICAL SPECIFICATIONS
Component 2-way System
Woofer Size mm (in.) 165 (6.5)
Tweeter Size mm (in.) 29 (1.14)
Power Handling W peak 345WATTS (115WATTS RMS) Impedance O 4
Frequency Response Hz 50 ÷ 24k
Sensitivity dB
SPL/2.83Vrms/1m 92,5
AP 1P tweeter crossover Name: APCX P 2T Hi-Pass: 4 KHz @ 12dB/Oct.
AP 6.5P woofer crossover Name: APCX P 2T Low-Pass: 4 kHz @ 6 dB/Oct.
APCX P 2T crossover
adjustment dB Tweeter Level; 0 / +3
Woofer Magnet size
D x d x h
mm
(in.)
100 x 40 x 18
(3.94 x 1.57 x 0.71)
Tweeter Magnet size
D x d x h
mm
(in.)
24,9 x 3,2 x 3,5 + 22 x 2,5
(0.98 x 0.13 x 0.14) + (0.87 x 0.1)
Weight of one speaker
Woofer 1,45 (3.2)
Tweeter 0,067 (0.15)
Voice Coil Ø
Woofer 32 (1.26)
Tweeter 25 (1)
ELECTRO-ACOUSTIC PARAMETERS
Woofer Tweeter
D mm 132 29
Xmax mm 5,6 -
Re O 3,1 5,75
Fs Hz 60 1600
Le mH 0,29 0,04
Vas I 11,40 -
Mms g 14,6 0,23
Cms mm/N 0,47 0,05
BL T•m 5,35 2,7
Qts 0,55 1,21
Qes 0,60 1,74
Qms 7,6 4
Spl dB/1W/1m 89,5 89,6
