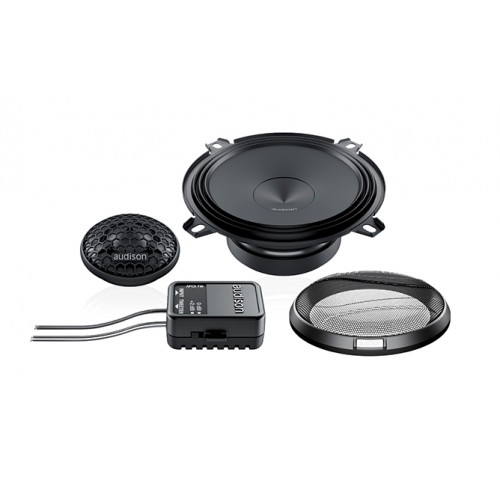

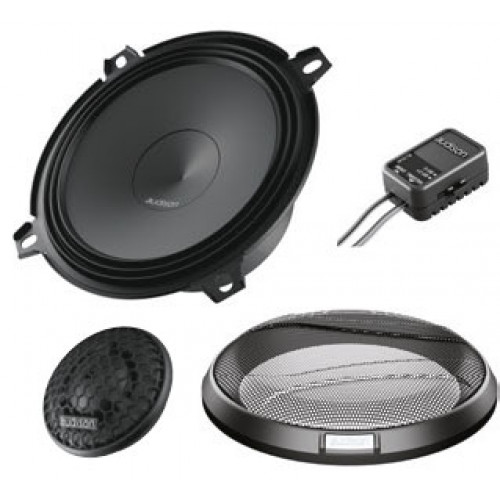

AUDISON APK130
5" SPLITSYSTEM

Two way system features AP 1 tweeter and AP 5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.
To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

SPECIFICATIONS
Comp 2 way System
Size 130 mm (5?) Woofer
26 mm (1?) Tweeter
46,5 x 37,5 x 20,1 mm (1.83? x 1.47 x 0.8) Crossover
Power Handling 75 W Continuous Power
225 W Peak Power
Impedance 4 O
Frequency Response 70 – 20k Hz
Sensitivity 93 dB/Spl
