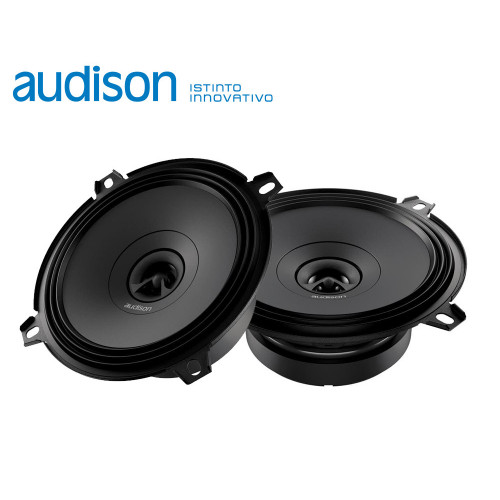

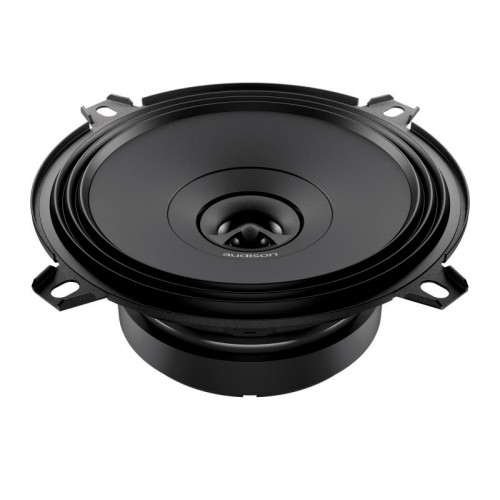

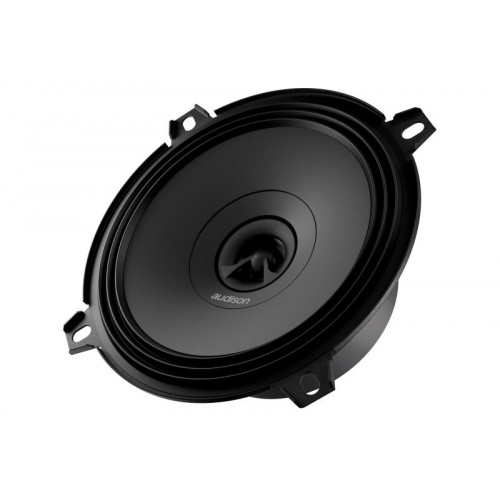

AUDISON APX-5
5" COAXIAL SPEAKERS
50w RMS

APX 5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 5? cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

SPECIFICATIONS
Comp Two way coaxial
Size Woofer 130 mm (5?)
Tweeter diaphragm 24 mm (0.9?)
Power Handling 50 W Continuous Power
150 W Peak Power
Impedance 4 O
Frequency Response 70 ÷ 23k Hz
Sensitivity 93 dB/Spl
Magnet High density flux ferrite
Dome Water-repellent pressed paper
