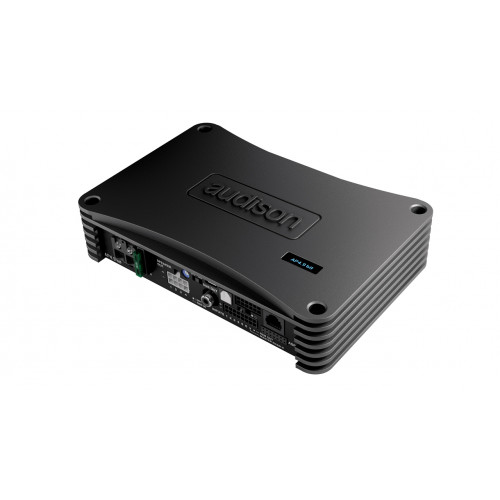

AP4.9 bit

4 channel amplifier featuring
9 channel built-in processor.
AP4.9 bit amplifier was designed for the Integration into OEM front/rear
systems where a lot of power is required. The built-in processor, that this
amplifier shares with the AP8.9 bit, provides the ability to assign the pre-outs to the
AP1 D amplifier to drive a subwoofer, to the AP4 D amplifier to have 4 additional amplified
channels exceeding 1080 W @ 4 - 2 ? total power


POWER SUPPLY
Voltage: 7.5 ÷ 15 VDC
Idling current: 1.32 A
Switched off: <2 mA
Consumption @ 14.4 VDC 2? Max Musical Power (without CPL): 30 A
Remote IN 7 ÷ 15 VDC (1 mA)
Remote OUT 11 ÷ 15 VDC (200 mA)
Fuse 30 A
ART (Automatic Remote Turn on/off) Speakers to input - selectable
AST (Automatic Signal Turn on/off) Pre-In to input - selectable
CPL (Continuous Power Limiting) Max continuous power - selectable
DIGITAL SIGNAL PROCESSOR
(32 bit Cirrus Logic; Clock speed: 147 MHz)
Crossover: Full / Hi Pass / Lo Pass / Band Pass
Crossover type and slope:
Linkwitz @ 12/24 dB - Butterworth @ 6/12/18/24 dB
Crossover Frequency: 68 steps @ 20 ÷ 20k Hz
Phase inversion: 0° / 180°
Analog Input Equalizer: Automatic De-Equalization
Output Equalizer
N.9 Parametrics Equalizers: ±12 dB; 10 pole; 20 ÷ 20k Hz
Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 in.
Time Alignment Delay 0 ÷ 15 ms
Time Alignment Step 0,08 ms; 2,8 cm / 1.1 in.
Time Alignment Fine Set 0,02 ms; 0,7 cm / 0.27 in.
SYSTEM SET:
Preset (Drive Preset) Rotary switch for 7 installation Presets
Acoustic Preset N.2 DSP Memory, DRC selectable/customizable
CONTROL CONNECTIONS
From / to personal computer 1 x micro USB-B
To Audison Electronics DRC controls
ASP For module: Automatic Speaker Presence
Optical / AUX select 12V control for Optical In / AUX enable
Master enable 12V control for Master In enable
GENERAL REQUIREMENTS
PC connections Micro USB (1.1 / 2.0 / 3.0)
Software/PC requirements:
Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8
Graphic card min. resolution: 800 x 600
Ambient operating temperature range: 0 °C to 55 °C (32°F to 131°F)
SIZE / WEIGHT
Max size (mm/in.): 198 x 45,50 x 134 / 7.8 x 1.8 x 5.27
Weight (kg/lb): 1,36 / 2.99
AMPLIFIER STAGE
Distortion - THD @ 1 kHz, 4 O, 90% Output Power: 0.10 %
Bandwidth @ -3 dB, 2 V RMS, 4?: 10 ÷ 20k Hz
S/N ratio @ A weighted, 2V, Output Power: 95 dBA
Damping factor @ 1 kHz, 2 V RMS, 4?: >170
Input sensitivity: 2 ÷ 15 V RMS
Input impedance: 15k ?
LOAD IMPEDANCE (MIN):
• 4 Ch: 1-2-3-4 2?
• 2 Ch: Bridge (1-2) (3-4) 4?
MAX POWER 520 W
OUTPUT POWER (RMS) @ 14.4 VDC, 1% THD:
• 4 Ch @ 4?: 70 W x 4
• 4 Ch @ 2?: 130 W x 4
• 2 Ch - (Bridge 1/2; 3/4) @ 4 W 260 W x 2
OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:
• 4 Ch @ 4?: 90 W x 4
• 4 Ch @ 2?: 180 W x 4
• 2 Ch - (Bridge 1/2; 3/4) @ 4 W 360 W x 2
SIGNAL CONNECTIONS
Input Stage:
• Config 1 Hi / Lo level FL-FR-RL-RR + N.2 customizable
• Config 2 Hi / Lo level FL-FR-RL-RR + Stereo Aux In (Selectable: DRC/wire)
• Optical IN (S/P-DIF PCM) 96 kHz/24 bit max (Selectable: DRC/wire)
CEA SPECIFICATIONS
Output power @ 4?, ?1% THD+N, 14.4 V: 70 W x 4
SN ratio (ref. 1 W output): 75 dBA
