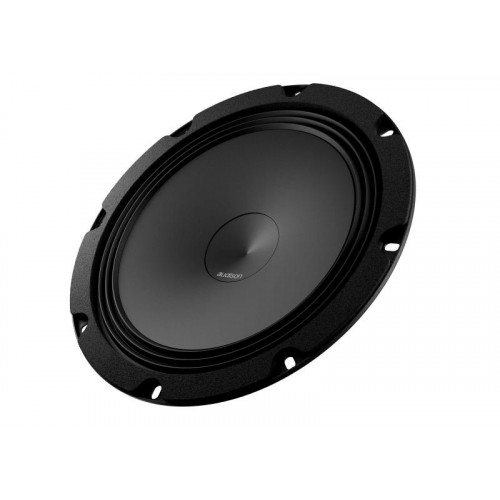

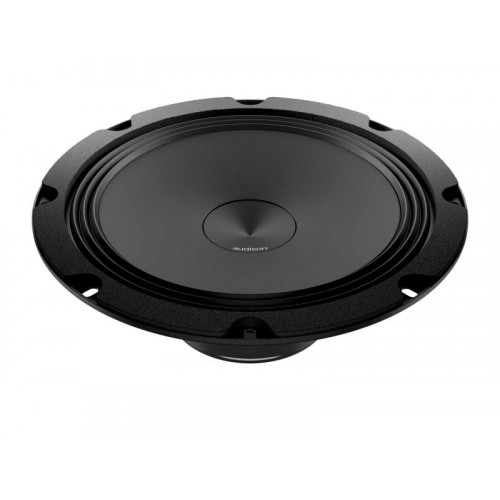

AP8 WOOFER

Water-repellent treated paper cone, featuring a profile developed
with FEM (Finite Element Method) simulation technology and
optimized with the Klippel Scan Vibrometer.
2 No passive crossover required to maximize efficiency: dome
profile optimised with Klippel R&D Scan Vibrometer to obtain a
calibrated mechanical low-pass cut-off frequency.
3 Reduced mounting depth, providing ease of installation in OEM
placements.
4 TPU (Thermoplastic Polyurethane) surround, featuring the exclusive
shallow “Triple Wave” profile, for maximum excursion linearity.
5 Compact basket, protected by abrasion-resistant and scratch-proof
coating, the motor affixed with damping epoxy adhesive.

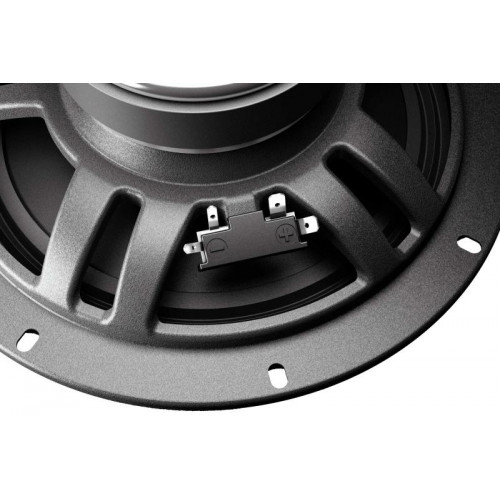

6 High current fast-on terminal with double contact on positive
and negative poles for high flexibility and quick connection. The
terminal features a temperature resistant plastic cover, protecting
it against accidental short circuits.
7 Developed with the KLIPPEL suite.
*Grille included

TECHNICAL SPECIFICATIONS

Component Woofer
Size mm (in.) 200 (8)
Power Handling W peak 300
W continuos 100
Impedance ? 4
Frequency Response Hz 35 ÷ 3k
Magnet size mm 90 x 40 x 17
D x h (in.) (3.54 x 1.57 x 0.67)
Weight of one speaker kg (lb) 1,2 (2.64)
Voice Coil Ø mm (in.) 25 (1)

ELECTRO-ACOUSTIC PARAMETERS

D mm 159
Xmax mm ±3,3
Re ? 3,1
Fs Hz 60
Le mH 0,3
Vas l 20
Mms g 19
Cms mm/N 0,35
BL T•m 5,4
Qts 0,7
Qes 0,8
Qms 5
Spl dB 93,5
