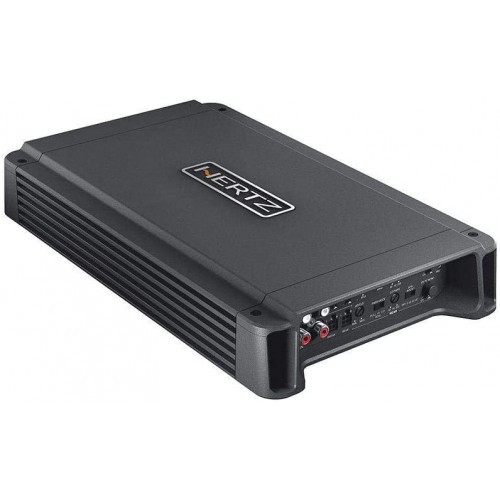

HCP 4DK
HIGH POWER D-CLASS FOUR CHANNEL AMPLIFIER
The new HCP 4DK features latest generation D-Class 2O stable output stage reaching the impressive max power of 2000 W with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35 A
Idling current (power ON/OFF): 1.6 A / 0.05 mA
Consumption @ 2 ?, 14.4 VDC
(Max Musical Power): 40 A
Remote In: 4 ÷ 16 VDC - 1 mA
ART TM: Automatic Remote Turn-On/Off with Speaker-In
Inputs / Outputs / Filter
INPUTS : PRE IN / SPEAKER IN
Pre out FULL range (FRONT): Yes
FRONT Ch. filters FULL:Yes
Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
REAR Ch. filters FULL:Yes
Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
FRONT Ch. MONO (on/off): Yes
REAR Ch. MONO (on/off): Yes
BOOST 50 Hz (adjust): (0 ÷ 12) dB
Max size (mm / in.): 315 x 190 x 50 / 12.40 x 7.48 x 1.97
Weight (kg / lb.): 2,73 / 6.01
Features:
Distorsion - THD (100 Hz @ 4 ?): 0.03%
Bandwidth: 10 ÷ 35k Hz
S/N Ratio (A weighted @ 1 V): 105 dB
Damping factor (100 Hz @ 4 ?): 200
Pre-In sensitivity: 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN) @ 4 Ch: 2 ?
@ 3 Ch: 2 ? + 2 ? + 4 ?
@ 2 Ch: 4 ?
Output Power (RMS) @ 14.4 VDC, THD 1%:
4 Ch: 120 W x 4 (4 ?)
4 Ch: 220 W x 4 (2 ?)
3 Ch: 120 W x 2 (4 ?) + 440 W x 1 (4 ?)
3 Ch: 220 W x 2 (4 ?) + 440 W x 1 (4 ?)
2 Ch: 440 W x 2 (4 ?)
Output Power (RMS) @ 14.4 VDC, THD 10%:
4 Ch: 150 W x 4 (4 ?)
4 Ch: 250 W x 4 (2 ?)
3 Ch: 150 W x 2 (4 ?) + 520 W x 1 (4 ?)
3 Ch: 250 W x 2 (2 ?) + 520 W x 1 (4 ?)
2 Ch: 520 W x 2 (4 ?)
