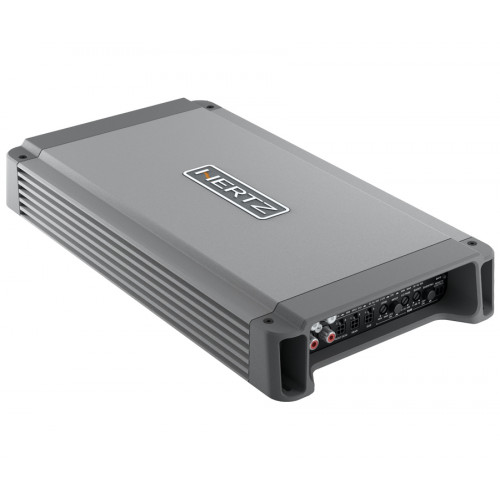

HERTZ HCP5MD 5CHANNEL MARINE AMPLIFIER

HCP 5MDCh: 5 - 3 / 1500 W
lnputs: HCP 5MD marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier.

Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies.

More specifically HCP 5MD is suitable for a five channels system with subwoofer, a tree channel front + sub system using the front and rear built-in filters that also include a bass boost circuit and a subsonic filter.


General Specs
Channels 5 - 3
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25 A
Idling current (power ON/OFF) 2 A / 0.04 mA
Consumption @ 2 ?, 14.4 VDC (Max Musical Power): 30 A
Remote In: 7 ÷ 15 VDC - 1 mA
ART Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion - THD (100 Hz @ 4 ?) 0.02 %
Bandwidth FRONT/REAR: 10 ÷ 50k Hz
Bandwidth SUB: 10 ÷ 500 Hz
S/N Ratio (A weighted @ 1 V): 100 dB
Damping factor (100 Hz @ 4 ?) FRONT/REAR: 100
Damping factor (100 Hz @ 4 ?) SUB: 250
Pre-In sensitivity: 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 5 Ch: 2 ?
@ 3 Ch: 4 ? + 4 ? + 2 ?
Max size (mm / in.): 345 x 190 x 50 / 13.58 x 7.48 x 1.97
Weight (kg / lb.): 2.61 / 5.75
Adjustable Crossovers yes
Output Power
Output Power (RMS) @ 14.4 VDC, THD 1%:
5 Ch: 55 W x 4 + 160 W x 1 (4 ?)
5 Ch: 90 W x 4 + 280 W x 1 (2 ?)
3 Ch: 180 W x 2 (4 ?) + 160 W x 1 (4 ?)
3 Ch: 180 W x 2 (4 ?) + 280 W x 1 (2 ?)
Output Power (RMS) @ 14.4 VDC, THD 10%:
5 Ch: 65 W x 4 + 200 W x 1 (4 ?)
5 Ch: 105 W x 4 + 330 W x 1 (2 ?)
3 Ch: 210 W x 2 (4 ?) + 200 W x 1 (4 ?)
3 Ch: 210 W x 2 (4 ?) + 330 W x 1 (2 ?)
CEA 2006-A Ratings:
RMS Power (4 ?, = 1 % THD + N, 14.4 V): 50 W x 4 Ch + 150 W + 1 Ch
S/N Ratio (ref. 1 W output): (50 W Ch) 83 dBA
(150 W Ch) 85 dBA
Total Power RMS 1500 W
INPUTS / FILTERS
INPUTS: PRE IN / SPEAKER IN
FRONT Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 5k Hz @ 12 dB/Oct.
REAR Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 5k Hz @ 12 dB/Oct.
Band-Pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct.
50 ÷ 5 kHz (lo) @ 12 dB/Oct.
SUB Ch. filter LO-PASS: 50 ÷ 500 Hz @ 24 dB/Oct.
SUBSONIC (on/off): 25 Hz @ 24 dB/Oct.
BOOST 50 Hz (adjust): (0 ÷12) dB
Remote Volume Control: -50 ÷ 6) dB

Output Power
Output Power (RMS) @ 14.4 VDC, THD 1%:
5 Ch: 55 W x 4 + 160 W x 1 (4 ?)
5 Ch: 90 W x 4 + 280 W x 1 (2 ?)
3 Ch: 180 W x 2 (4 ?) + 160 W x 1 (4 ?)
3 Ch: 180 W x 2 (4 ?) + 280 W x 1 (2 ?)
Output Power (RMS) @ 14.4 VDC, THD 10%:
5 Ch: 65 W x 4 + 200 W x 1 (4 ?)
5 Ch: 105 W x 4 + 330 W x 1 (2 ?)
3 Ch: 210 W x 2 (4 ?) + 200 W x 1 (4 ?)
3 Ch: 210 W x 2 (4 ?) + 330 W x 1 (2 ?)
CEA 2006-A Ratings:
RMS Power (4 ?, = 1 % THD + N, 14.4 V): 50 W x 4 Ch + 150 W + 1 Ch
S/N Ratio (ref. 1 W output): (50 W Ch) 83 dBA
(150 W Ch) 85 dBA
Total Power RMS 1500 W
