KICKER KICKER 49PTRTP10INCH 10" SUB + AMPLIFIER DOWN FIRING

About the Kicker 49PTRTP10

Features & specs

General

Enclosure Type Passive Radiator
Finish Material MDF, carpet
Grille ---
Connector Type Terminal block/set-screws
Quick-disconnect Plug Yes
Bi-amp Inputs No
Woofer Size (inches) 10
Woofer Material Polypropylene
Passive Radiator 10
Width 26-1/2"
Height 6"
Depth 13-3/16"
Parts Warranty 1 Year

Specifications

Frequency Response 25-150Hz
Amplifier Power (RMS) 400 watts
Maximum Wattage 800 watts
Sensitivity ---
Impedance ---
Second Voice Coil Impedance ---

Small footprint, big bass

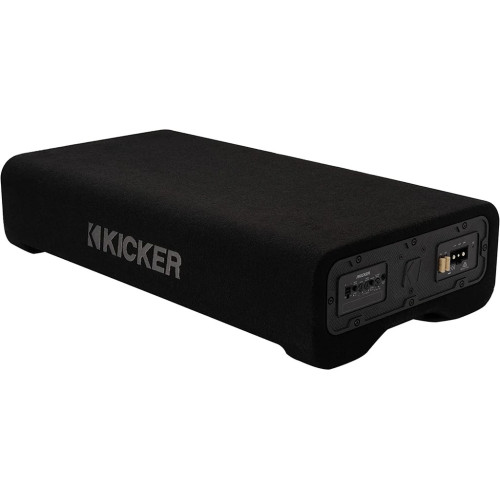

Kicker's 49PTRTP10 powered subwoofer enclosure combines a 400-watt amplifier with a low-profile CompRT 10" subwoofer and a 10" passive radiator in a downward-firing box that brings Kicker bass power to the crowded spaces of today's cars and trucks. The passive radiator reacts to the air pressure produced by the active sub, adding extra low-end thump without the noise of a ported enclosure.

Tough subwoofer

The CompRT sub's tough injection-molded polypropylene cone is stiff enough to resist distortion when you're pushing the volume. Its rubber surround stands up to heavy use and combines with a specially-designed back plate to give you more excursion (which equals more bass) than other skinny subs.

Plenty of power

A 400-watt RMS amplifier drives the 49PTRTP10's sub, providing the power to bring out the best in your tunes. The amp's controls include a low-pass crossover, phase switch, and bass boost, so you can dial in the bass sound to your liking. High- and low-level inputs let you connect the enclosure to any system, while the included wired remote knob lets you adjust bass intensity from the driver's seat.

Made to order

The rugged sealed box was designed specifically for the subwoofer, so you can count on getting maximum performance whatever music you listen to. The box's downward-firing design helps protect the sub from damage and lets you place items on top of the cabinet to save space. Its sturdy medium-density fiberboard construction and rugged black carpet covering give the enclosure good looks to complement its performance.


Product highlights:

sealed downward-firing enclosure with one CompRT 10" subwoofer and passive radiator

400 watts RMS amplifier (800 watts peak)

3/4" medium-density fiberboard construction covered with carpet

remote bass-level control included

separate low-level and speaker-level inputs

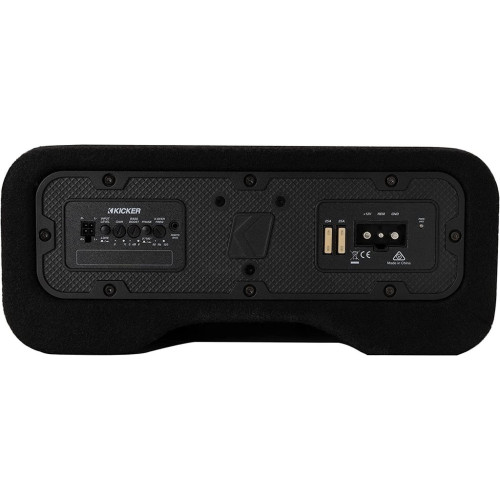

controls:

variable low-pass crossover (50-200 Hz, 12 dB/octave)

phase switch (0°, 180°)

variable bass boost

frequency response: 25-150 Hz

dimensions: 26.5"W x 6"H x 13.13"D

warranty: 1 year
