BLAM 100RFS 4" SPLITSYSTEM

TECHNICAL SPECIFICATIONS

Component Speaker
Max power 100 W
Nominal power 50 W
Impedance 2 ?
Freq. Response 80 Hz - 15 kHz
Sensitivity (2,83V/1m) 90.3 dB
Magnet Ferrite
Magnet size Ø x h 70 x 15 mm 2.756‘’x 0.591‘’
Total driver displacement 0.11 l 0.004 cf
Weight of one component 0.578 kg 1.274 lb
Voice coil Ø 25 mm 0.984“
Voice coil height 8.4 mm 0.331“
Cone Cellulose pulp


KIT 100 RFS
HIGH PERFORMANCE 2 WAY 100 MM “FRENCH SOUND” SYSTEM


Technical specification

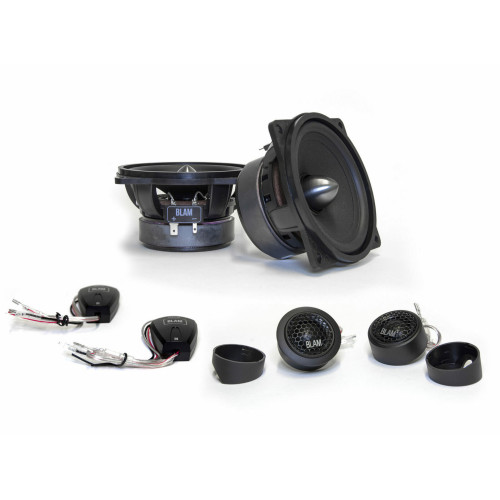

This kit includes 2 x 100 mm (4") woofers, 2 x 20 mm soft dome tweeters and 2 x 6 dB/octave high-pass crossovers.

Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 O



Composition

Woofer:
Original BLAM composite basket reinforced with fiberglass
High quality treated cellulose pulp membrane
Butyl rubber surround
Long life “Conex” damper
25 mm (1”) voice coil on kapton former
70 mm x 15 mm ferrite magnet
Thick magnetic circuit (4 mm)

High quality 20 mm (3/4”) soft dome tweeter

6 dB/octave high pass crossover
Tweeter level adjustable to 0 dB or attenuated to -3 dB



Supplied accessories
Mounting screws
Mounting accessories for tweeters
User manual
