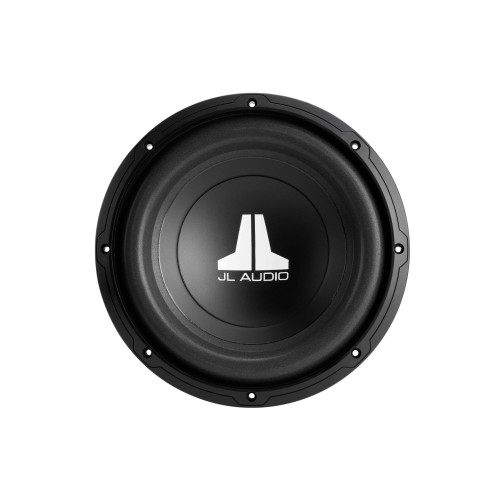

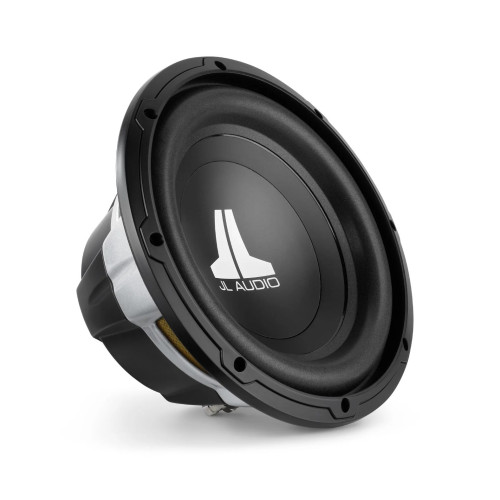

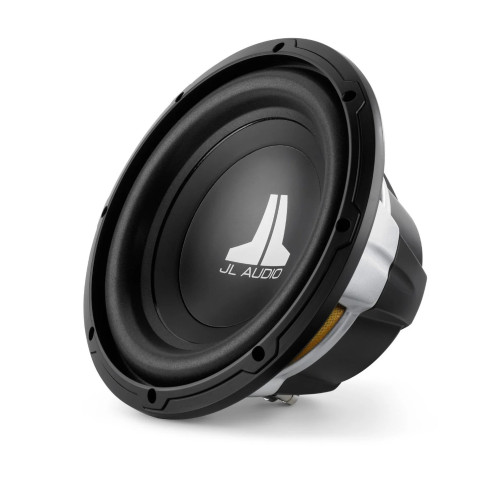

JL AUDIO 10W0v3-4 10" SVC SUBWOOFER

OVERVIEW:

W0v3 10-inch Subwoofer (300 W, 4 O)


The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.

The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.


SPECS:

Continuous Power Handling (RMS) 300 W
Recommended Amplifier Power (RMS) 75 - 300 W
Nominal Impedance (Znom) 4 O


Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.52 in / 267 mm
Mounting Hole Diameter (B) 9.0625 in / 230 mm
Bolt Hole Circle Diameter (C) 9.7 in / 246.5 mm
Motor Outer Diameter (D) 5.05 in / 128 mm
Mounting Depth (E) 4.90 in / 124 mm
Driver Displacement 0.034 cu ft / 0.96 L
