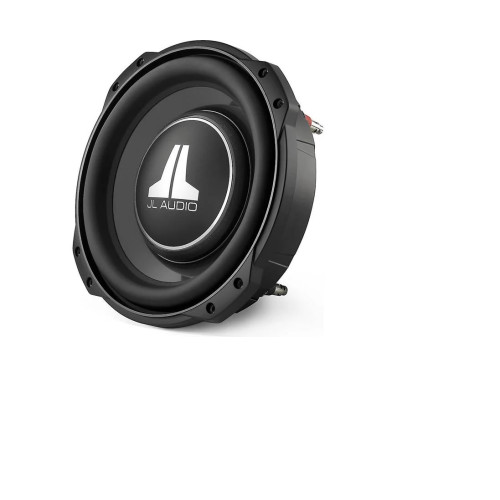

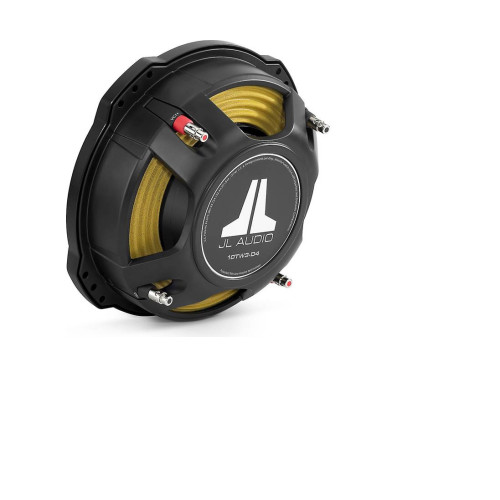

JL AUDIO 10TW3-D4 10" THIN LINE SUBWOOFER

Product info:

Featured in our article: Best shallow-mount car subwoofers for 2026
10" subwoofer with dual 4-ohm voice coils
shallow-mount design with small airspace requirements
mica-filled polypropylene cone with rubber surround
cast alloy basket
power range: 100-400 watts RMS
peak power handling: 800 watts
frequency response: 24-200 Hz
sensitivity: 82.1 dB
top-mount depth: 3-1/4"
sealed box volume: 0.519 cubic feet
grille not included

SPECS:

Features and Specs
Size 10-inch
Impedance (Ohms) 2, 8
Cone Material Mica-filled IMPP
Surround Material Rubber
Basket Material Cast Alloy
Grille None included
Free-Air No
Dual Voice Coil Yes
Sensitivity 82.1 dB at 1 watt
Frequency Response 24 - 200 Hz
Max RMS Power Handling 400
Peak Power Handling (Watts) 800
Top Mount Depth (inches) 3 1/4
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 9 9/16
Frame Width 10.47
Frame Length 11.17
Vas (liters) 19.82
Fs (Hz) 32.3
Qts 0.62
