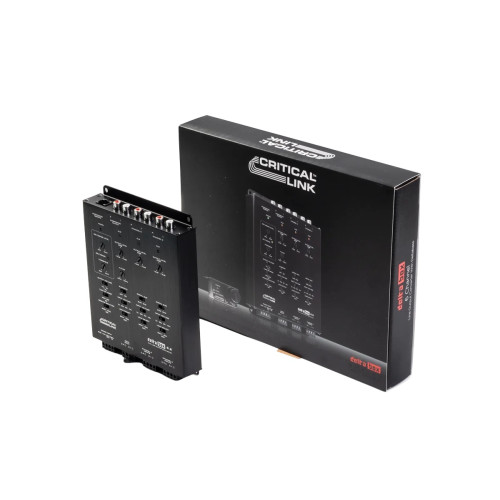

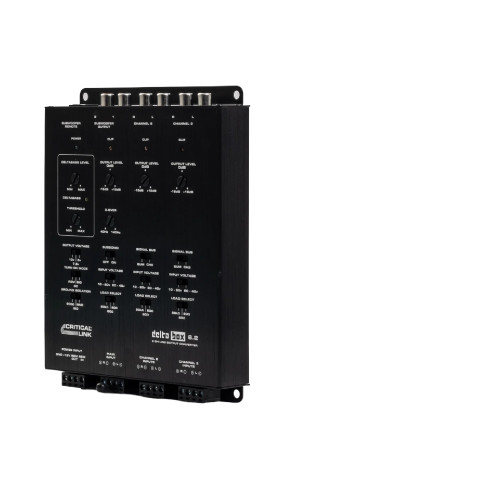

VIBE Critical Link DELTABOX6.2-V6 6 Channel Line Output Converter
Upgrade your factory car audio system with the VIBE Critical Link DELTABOX6.2-V6 6 Channel Line Output Converter. It allows you to connect aftermarket amplifiers and processors while keeping your original factory radio.

Furthermore, its 6-channel high-level input supports complex factory sound systems. Built-in signal summing combines factory audio channels to help create a full-range signal.

The unit also features VIBE Bass Restoration technology. This helps recover low bass that factory systems may reduce as the volume increases. As a result, you can enjoy more complete sound from your upgraded audio system.

6-channel high-level speaker input
4-channel preamp-level output
2 dedicated subwoofer outputs
Built-in signal summing for factory audio integration
VIBE Bass Restoration technology
Independent output level controls
Adjustable bass restoration level and threshold
Selectable 20O, 60O and 20kO load options
Selectable 10–20V and 20–40V input ranges
Multiple Auto Sense modes
Selectable Ground Lift settings
Adjustable crossover modes: Subsonic, LPF and Flat
Output voltage selection: 5V, 7.5V and 10V
Advanced Factory Audio Integration
The VIBE DELTABOX6.2-V6 is designed for modern factory sound systems with multiple speaker channels. It accepts up to six amplified speaker-level inputs and converts them into preamp-level outputs.

Therefore, you can add aftermarket amplifiers, processors and subwoofers without replacing the original head unit.

Built-In Signal Summing
Many factory audio systems divide sound across several speaker channels. However, this can make aftermarket upgrades more complicated.

The built-in signal summing feature combines multiple factory channels. This helps reconstruct a full-range audio signal for your aftermarket equipment.

VIBE Bass Restoration Technology
Factory audio systems can reduce low bass as the volume increases. This can affect the overall sound of your music.

VIBE Bass Restoration helps recover some of the missing low-frequency output. In addition, dedicated level and threshold controls allow you to adjust the bass restoration settings.

Independent Output Level Control
Each output channel has its own dedicated level control. This allows you to adjust individual output levels and balance your system.

As a result, you have greater control over your amplifier signal and gain settings.

Flexible System Configuration
The DELTABOX6.2-V6 offers selectable load options, input voltage ranges and Auto Sense modes. It also includes selectable Ground Lift settings.

Furthermore, its adjustable crossover options provide Subsonic, LPF and Flat modes. This gives you more flexibility when connecting different aftermarket audio components.

Professional Installation Recommended
This unit is designed for integration with factory audio systems and aftermarket equipment. However, correct connections and setup are important for reliable operation.

For this reason, professional installation is recommended.

Specifications
Brand: VIBE
Product Range: Critical Link
Model: DELTABOX6.2-V6
Type: 6 Channel Line Output Converter
High-Level Input: 6 Channel
Output: 4 Channel
Subwoofer Output: 2 Channel
Signal Summing: Built-in
Crossover Modes: Subsonic, LPF, Flat
Crossover Range: 1Hz – 140Hz
Bass Restoration: Yes
Output Voltage: 5V / 7.5V / 10V
Input Voltage – Low: 10V – 20V
Input Voltage – High: 20V – 40V
Load Options: 20O / 60O / 20kO
Dimensions (H x W x D): 150 x 151 x 21mm
