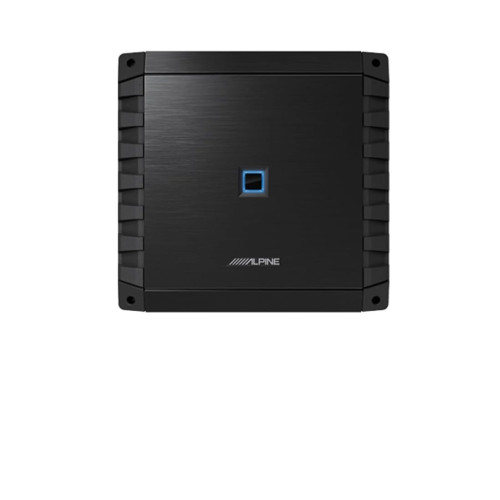

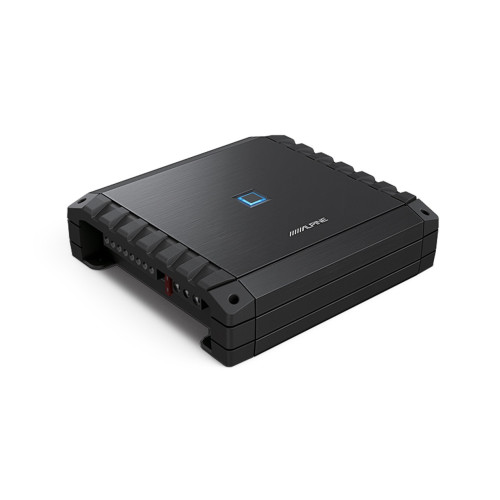

ALPINE S-A32F

Alpine introduces the all-new S-Series amplifiers - a perfect match to the S-Series speakers. These amps have an excellent Watts-per-Euro ratio in the Class-D category, feature a very high heat resistance and won’t shut down due to overheating. They also feature excellent sound quality in their price range.

All Digital Design
Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A32F measures just 204mm in width x 204mm in length for easy installation in virtually any vehicle.

Thermal Protection
Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

FEATURES
Install

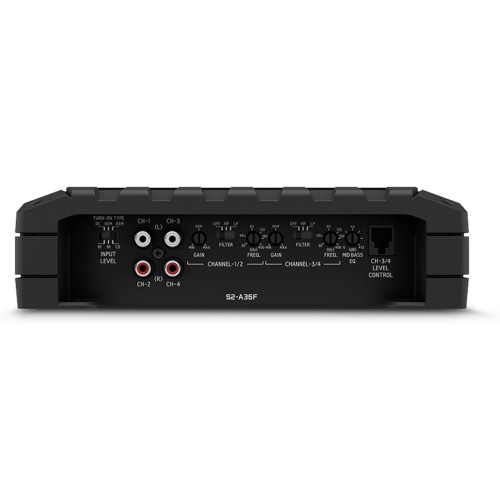

Terminal Layout: One side
Small footprint for easy installation
Screw terminals (for speaker and power cables)
General

Amplifier Type: Class-D (Digital)
Channel Design: 4/3/2 Channel
Thermal Management Control
Top Mounted LED Power/Status Indicator
Speaker Level Input with remote turn on
Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
Gain Control: Adjustable

SPECIFICATIONS
Max Power Output Ratings

Total Max Power: 640W
RMS Power Ratings

Per Channel into 2 Ohms, 14.4V (=1%THD+N): 4 x 80W
Per Channel into 4 Ohms, 14.4V (=1%THD+N): 4 x 55W
Bridged into 4 Ohms, 14.4V (=1%THD+N): 2 x 160W
Sound Tuning

Crossover: Variable LPF, 50-400Hz (-12dB/oct )
Crossover: Variable HPF, 50-400Hz (-12dB/oct )
General

Power Requirements: 14.4 V.DC (9 - 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
High Level Input with automatic power on
Cable size: Power Cable AWG 8, SPK Cable AWG 10
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 30kHz
THD+N (@ 10W into 4 ohms): <0.03%
THD+N (@ 50W into 4 ohms): <0.08%
Damping Factor: >100
Signal to Noise (@ 50 Watts into 4 Ohms): >98dB
Weight: 1.9 kg
Dimensions

Heat Sink (WxHxD) mm: 204 x 58 x 204
