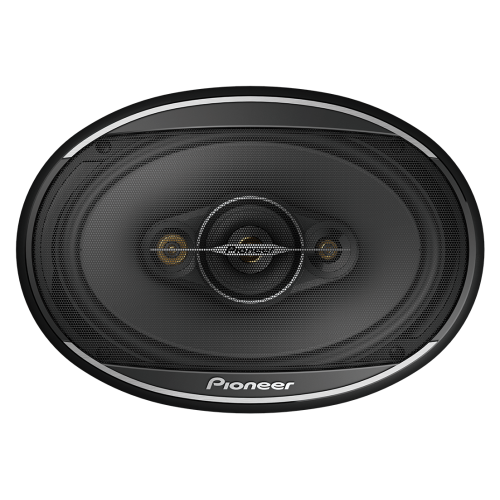

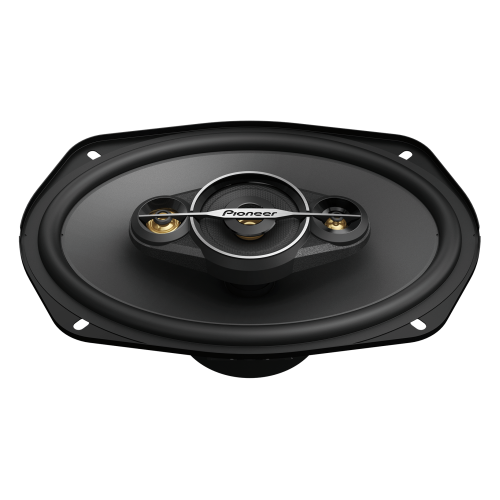

PIONEER TS-A6968S 6X9'S 450WATT 4WAY
- Product Code: SPK-000095
-
R1,100.00
All prices Include VAT
PIONEER TS-A6990F
6X9 SPEAKERS
700W
5 WAY
700 Watts Max Power (120 Watts Nominal)
Triple polyethylene terephthalate (PET) hard dome tweeter
2-1/4" polyetherimide (PEI) film cone midrange
6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.
Extreme bass performance
Deep woofer basket and oversized motor structure design for maximum bass and sound quality
OPEN & SMOOTH
Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
SYSTEM
System Type
5-way Coaxial
Sound Pressure Level (Sensitivity)
90 dB (+- 1.5dB)
Frequency Range
22 Hz to 25 kHz
Continuous Power Handling (RMS)
120 Watts
Maximum Peak Power Handling
700 Watts
Nominal Impedance
4 ohms
WOOFER
Diameter
6 x 9"
Cone Material
Carbon and mica reinforced IMPP
Surround Material
Elastic polymer
Magnet Material
Ferrite
Magnet Weight
15.2 oz
Mounting Depth
3-3/8" (Deep basket)
TWEETER
Type
Triple Polyethylene terephthalate (PET) dome tweeter
Diameter
9 mm (Super), 11 mm, and 18 mm
